5020.036.040 / 15020036040 RQW-M M40 x 1.5 mm Metric FLEXAquick® Grey 90 degree elbow connector for 34.5 mm OD conduit, IP68 sealing

Product Name:
5020.036.040 / 15020036040 RQW-M M40 x 1.5 mm Metric FLEXAquick® Grey 90 degree elbow connector for 34.5 mm OD conduit, IP68 sealing

Flexa Logo
Mfr. Part # 15020036040 Categories , , ,

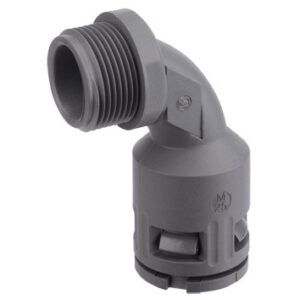

The Flexaquick® RQW-M 15020036040 (Old Part Number 5020.036.040) is a Grey plastic 90° elbow conduit connector with metric M40 x 1.5 mm outer thread.

It features the Flexaquick® quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

This conduit connector installs in seconds for “Quick connect on” fitting and conduit assembly or “Quick disconnect off” fitting and conduit disassembly. NO tools required!

Use the RQW-M with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Find the right conduit solution from over 20 varieties of ROHRflex® corrugated nylon PA6, PA12 and multi-layer conduits.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$25.37 US$25.37
5 US$22.83 US$114.17
10 US$20.30 US$202.96
20 US$19.03 US$380.55
50 US$17.76 US$887.95
100+ US$16.49 US$1,649.05+
Unit Cost : US$
Extended Cost : US$25.37
Add to Quote

Specifications

Package Size

10 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQW-M
Part Number

15020036040
Part Number (Old)

5020.036.040
Colour

Grey
Thread Type

Metric
Thread Size

M40 x 1.5
Thread Length C (mm)

15
Body Length D (mm)

67.5
Body Length E (mm)

67
Material

PA6 Plastic
OD Outside Diameter (mm)

34.5
ΦI Inside Diameter (mm)

32
ΦB Max Outer Diameter (mm)

44
Weight (kg|100)

4.4
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113148186

Data Sheet

Properties

  • resistant against oil and benzine
  • highly resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations

Certifications
