FLEXAquick® Plastic Thread 90° Elbow Fittings

FLEXAquick® plastic thread 90° elbow fittings use an integrated quick-connect locking clip that securely engages conduit corrugations without tools. Unlike traditional compression elbows that require ferrules and tightening hardware, these fittings install or remove in seconds while maintaining secure conduit retention.

Two 90° configurations are available to suit different routing requirements. Traditional right-angle elbows provide compact conduit entry in confined spaces, while bend-style (sweep) elbows offer a smoother radius that reduces stress on conductors and can improve cable pull-through performance in higher conduit fill applications.

In addition to threaded elbow configurations, the FLEXAquick® RQW-F provides a flange-mounted, threadless 90° panel entry option for applications requiring flush mounting and increased cable pass-through capacity.

Plastic thread versions provide reliable, cost-effective performance for industrial installations while maintaining the same rapid mounting and dismounting capability as other FLEXAquick® fittings.

FLEXAquick® quick-connect fittings and ROHRflex® flexible corrugated conduits are flagship product lines from IBIS Electro-Products Corp, specializing in high-performance electrical conduit systems.

⚡ No Tools Required — Install in Seconds

FLEXAquick® quick-connect fittings eliminate deburring, ferrules, extra internal sealing rings, and clamping compression rings. Simply push to connect, squeeze to release, and reinstall with no tools — saving time and labour compared to traditional conduit fittings.

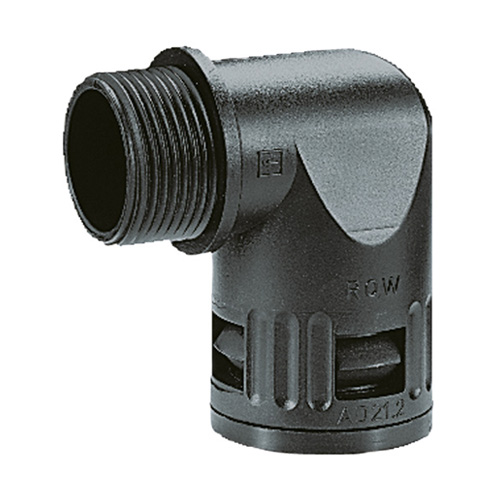

Hard 90° Elbow Fittings - IP68 / IP69K

Hard 90° Elbow Fittings - IP66

Smooth Bend 90° Elbow Fittings - IP68 / IP69K

Special Mounting & Additional 90° Elbow Fittings

Flange Mount 90° Elbow — FLEXAquick® RQW-F

The FLEXAquick® RQW-F is a specialized flange-mounted 90° elbow fitting designed for flush panel installation without threaded engagement. The integrated flange plate bolts directly to the mounting surface.

Because the panel cutout for this fitting is larger than a standard threaded elbow of the same conduit size, it provides an expanded internal throat that allows improved cable pass-through and easier routing in higher fill-rate applications.

On the conduit side, the RQW-F features the same FLEXAquick® quick-connect locking mechanism for secure conduit attachment without ferrules, compression rings, or installation hand tools.

Why FLEXAquick® 90° Elbow Fittings Stand Out

FLEXAquick® 90° elbow fittings use an integrated quick-connect locking clip that securely engages the corrugations of flexible corrugated conduits without tools. Unlike traditional compression elbows that rely on separate nuts, ferrules, and tightening steps, these fittings can be installed or removed in seconds, reducing installation time and improving consistency and productivity.

The 90° design allows conduit routing in confined spaces while maintaining the same rapid mounting and dismounting capability as other FLEXAquick® fittings. This mechanism makes them well suited for industrial automation, OEM wire harnessing, panel entries, and machine building environments where space and installation access are limited.

Applications for FLEXAquick® Plastic Thread 90° Elbow Fittings

FLEXAquick® plastic thread 90° elbow fittings are designed for secure conduit termination with a 90° configuration that supports right-angle routing in confined spaces. Available in both traditional hard 90° and smooth bend (sweep) 90° designs, these fittings accommodate varying cable fill and routing requirements while maintaining rapid, tool-free installation.

Plastic thread variants provide durable, cost-effective performance for industrial and automation environments where extreme mechanical torque demands are not required.

Rail & Transit Systems

  • Passenger railcars

  • Subways and light rail vehicles

  • Streetcars and tram systems

  • Equipment housings requiring right-angle conduit entry

Industrial Automation & Machine Control

  • Machine building and OEM equipment

  • Robotics and motion control systems

  • Industrial control panels and enclosures

  • Wire and cable harnessing in confined mounting areas

Mobile & Transportation Equipment

  • Electric vehicles and charging infrastructure

  • Agricultural and construction machinery

  • Material handling systems

  • Installations requiring vibration-resistant right-angle routing

High-Reliability Industrial Environments

  • Renewable energy installations

  • Power distribution systems

  • Medical and laboratory equipment

  • Applications subject to vibration or mechanical stress

Frequently Asked Questions about FLEXAquick® 90° Elbow Fittings

No. FLEXAquick® 90° quick-connect elbow fittings use a locking design that eliminates the need for compression nuts, ferrules, and installation hand tools. Simply push the fitting onto ROHRflex® flexible corrugated conduits — the integrated locking mechanism engages the conduit corrugations to secure the connection.

FLEXAquick® 90° elbow fittings are available in NPT, PG, Metric, and CTG thread standards depending on the specific model. Refer to individual product pages to confirm available sizes and configurations.

Standard 90° elbows provide a compact right-angle transition suitable for tight mounting spaces. Bend-style (sweep) 90° elbows feature a smoother radius that reduces stress on conductors and can improve cable pull-through performance in applications with higher conduit fill or multiple cables passing through the fitting. Selection depends on available space, routing requirements, and cable management considerations.

Plastic and metal thread FLEXAquick® fittings use the same quick-connect conduit locking mechanism and are installed in the same tool-free manner. The primary difference is the threaded material and its mechanical performance characteristics.

Plastic thread fittings provide durable, cost-effective performance suitable for most industrial, automation, and OEM applications. Metal thread versions use nickel-plated brass threads that support higher installation torque and provide a more robust threaded connection in environments subject to vibration, impact, or increased mechanical stress.

Selection depends on the installation requirements, expected mechanical demands, and the specifications of the equipment or enclosure being connected.

Ingress protection performance varies by model and configuration. Certain FLEXAquick® 90° elbow fittings are rated IP66, IP68, or IP69K when installed in accordance with individual product specifications.

Yes. FLEXAquick® 90° elbow fittings are specifically engineered to integrate with ROHRflex® flexible corrugated conduits as part of a complete conduit system. Compatibility with other corrugated plastic conduits of the same outside diameter (OD) should be verified before installation.

The RQW-F is a 90° elbow fitting that mounts flush to a panel using an integrated flange plate rather than threaded engagement. It provides a larger internal opening compared to threaded elbows of the same conduit size while maintaining the FLEXAquick® quick-connect conduit interface.

Yes. FLEXAquick® quick-connect elbow fittings are designed for repeat mounting and dismounting when used as intended. Because they do not rely on ferrule deformation or compression nuts, they can be reinstalled without damage to the fitting, conduit, or sealing components.

Need Assistance Selecting the Right 90° Elbow Fitting?

FLEXAquick® plastic thread 90° elbow fittings are available in multiple thread standards and configurations. Contact IBIS Electro-Products Corp for application guidance and technical support.
