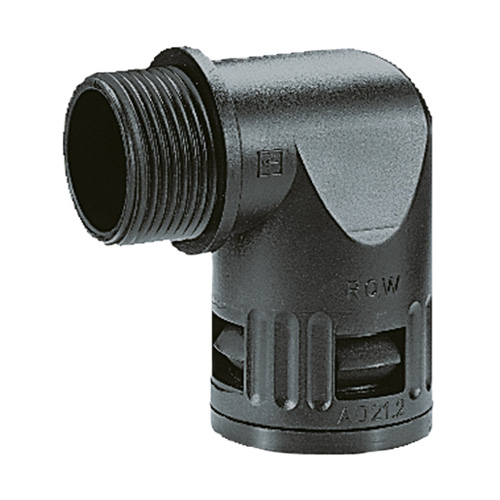

FLEXAquick® RQW1-P PG Plastic Thread Hard 90° Elbow
PG-threaded 90° elbow fittings with IP66 sealing
RQW1-P PG plastic thread hard 90° elbow fittings combine the FLEXAquick® quick-connect system with a PG threaded 90° elbow body for fast, secure, and tool-free conduit termination. The hard 90° elbow design provides a compact right-angle conduit entry point for installations where space is limited and dependable sealing is required.
Designed for use with ROHRflex® corrugated plastic conduits, RQW1-P fittings support machine building, automation, OEM wire and cable harnessing, transportation equipment, and industrial control installations where PG thread compatibility and IP66 protection are required.
FLEXAquick® quick-connect fittings and ROHRflex® flexible corrugated conduits are flagship product lines from IBIS Electro-Products Corp, specializing in high-performance electrical conduit systems.
Select the correct fitting by matching the required PG thread size, conduit outside diameter, and sealing requirement for the installation.
- Material: Polyamide (PA)
- Temperature: -40°C to +120°C
- Ingress Protection: IP66
FLEXAquick® RQW1-P PG-threaded 90° elbow fittings for corrugated plastic conduits
Image | Part Number | Colour | OD (mm) | Thread Size (PG) | Quantity | Product Details | Add to Cart |
|---|---|---|---|---|---|---|---|
 | Old: 5020.050.007 | Grey | 10 | 7 | | ||
 | Old: 5020.050.009 | Grey | 13 | 9 | | ||
 | Old: 5020.050.011 | Grey | 15.8 | 11 | | ||
 | Old: 5020.050.013 | Grey | 18.5 | 13.5 | | ||
 | Old: 5020.050.016 | Grey | 21.2 | 16 | | ||
 | Old: 5020.050.021 | Grey | 28.5 | 21 | | ||
 | Old: 5020.050.029 | Grey | 34.5 | 29 | | ||
 | Old: 5020.050.036 | Grey | 42.5 | 36 | | ||
 | Old: 5020.050.048 | Grey | 54.5 | 48 | | ||
 | Old: 5020.050.207 | Black | 10 | 7 | | ||
 | Old: 5020.050.209 | Black | 13 | 9 | | ||
 | Old: 5020.050.211 | Black | 15.8 | 11 | | ||
 | Old: 5020.050.213 | Black | 18.5 | 13.5 | | ||
 | Old: 5020.050.216 | Black | 21.2 | 16 | | ||
 | Old: 5020.050.221 | Black | 28.5 | 21 | | ||
 | Old: 5020.050.229 | Black | 34.5 | 29 | | ||
 | Old: 5020.050.236 | Black | 42.5 | 36 | | ||
 | Old: 5020.050.248 | Black | 54.5 | 48 | |
How to Choose the Right RQW1-P Fitting
Choose the correct RQW1-P fitting by matching the PG thread size, conduit OD, and sealing requirement.
- Match the required PG thread size
- Match the conduit OD
- Confirm the required sealing level
- Confirm ROHRflex® conduit suitability
- Use this fitting family where secure right-angle conduit termination and compact 90° conduit routing are required
Frequently Asked Questions about RQW1-P Fittings
What is the RQW1-P family used for?
RQW1-P fittings are used to terminate ROHRflex® corrugated plastic conduit into PG-threaded panels, enclosures, and devices while providing a compact 90° conduit entry and IP66 ingress protection.
Why choose an RQW1-P fitting instead of a straight PG fitting?
RQW1-P fittings are selected where conduit must change direction at the point of entry. The hard 90° elbow body helps create a compact right-angle routing path in tight installation spaces.
Do RQW1-P fittings require tools for conduit connection?
No tools are required for quick conduit connection or disconnection. The FLEXAquick® conduit side uses a quick-connect locking design for fast conduit attachment and release without compression nuts or ferrules. Standard installation procedures still apply for the threaded mounting side.
What sealing level do RQW1-P fittings provide?
RQW1-P fittings provide IP66 sealing when installed correctly according to product specifications.
Which conduits are RQW1-P fittings designed for?
RQW1-P fittings are designed for use with ROHRflex® corrugated plastic conduits matched to the correct conduit OD.
Are RQW1-P fittings suitable for industrial applications?
Yes. RQW1-P fittings are suitable for machine building, automation, transportation equipment, OEM assemblies, and industrial control installations requiring compact PG-threaded conduit entry and dependable IP66 protection.
How do RQW1-P fittings differ from RQW-P fittings?
RQW1-P fittings provide IP66 sealing, while RQW-P fittings provide IP68 / IP69K sealing. Both families use the FLEXAquick® quick-connect system and a hard 90° elbow body, but the sealing level should be matched to the application requirement.
Need help selecting the right RQW1-P fitting?
Contact IBIS for help matching PG thread size, conduit OD, and sealing requirement for your application.
