Flexa RQW1-P 5020.050.021 / 15020050021

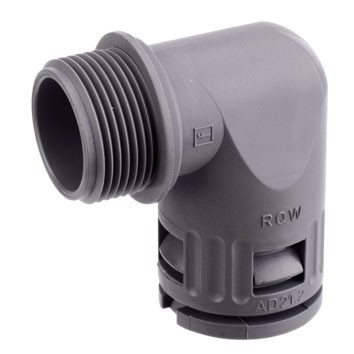

The Flexa RQW1-P 15020050021 (Old Part Number 5020.050.021) is described as a plastic 90° elbow conduit connector with PG 21 outer thread. It features the Flexaquick quick connect system with an integrated snap-in and release sleeve and conical sealing.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$15.78 | US$15.78 |
| 5 | US$15.31 | US$76.53 |
| 10 | US$14.99 | US$149.91 |
| 15 | US$14.20 | US$213.03 |
| 20 | US$13.41 | US$268.26 |
| 25 | US$12.62 | US$315.60 |
| 50 | US$11.84 | US$591.75 |
| 100 | US$11.05 | US$1,104.60 |
| 250+ | US$10.26 | US$2,564.25+ |
Unit Cost : US$
Extended Cost : US$15.78
Specifications
| Package Size | 25 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQW1-P |
| Part Number | 15020050021 |
| Part Number (Old) | 5020.050.021 |
| Colour | Grey |
| Thread Type | PG |
| Thread Size | 21 |
| Thread Length C (mm) | 13 |
| Body Length D (mm) | 58 |
| Body Length E (mm) | 56 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 28.5 |
| ΦI Inside Diameter (mm) | 24 |
| ΦB Max Outer Diameter (mm) | 37 |
| Weight (kg|100) | 2.8 |
| IP Rating | IP 66 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113149572 |
Data Sheet
Properties
- resistant against oil and benzine
- highly resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- Machine and Plant Constructions
- Automotive
- Automation
- Electrical Installations
