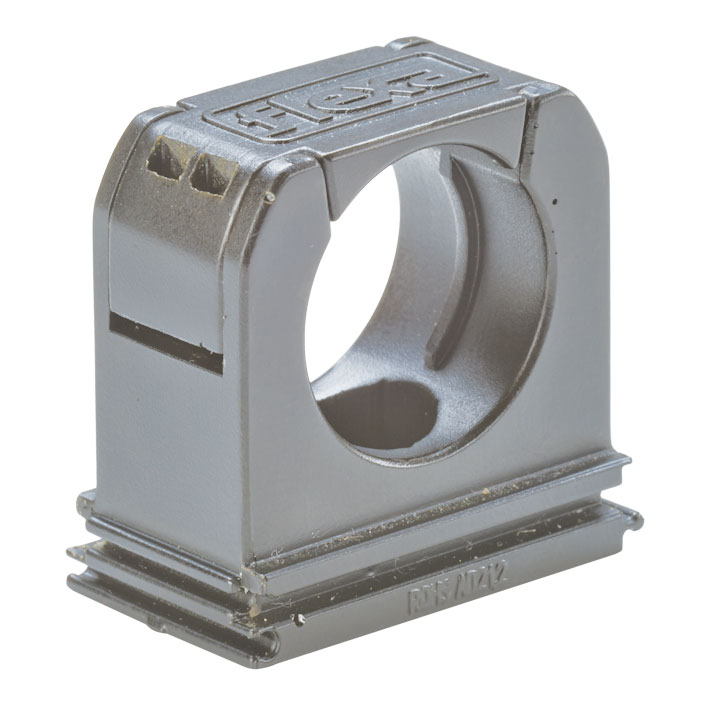

The Flexa RQS 15030020048 (Old Part Number 5030.020.048) is a grey 54.5 mm OD one-piece medium duty nylon plastic conduit clip with an integrated hinged clip cap. Installation is simple using a single mounting screw or onto a C-profile bar. Conduits snap into the clip and the hinged clip cap locks-in the conduit. Lateral strain relief is also provided by an internal rib which locks firmly into a single conduit corrugation.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$8.64 | US$8.64 |
| 5 | US$7.78 | US$38.88 |
| 10 | US$6.91 | US$69.12 |
| 20 | US$6.48 | US$129.60 |
| 50+ | US$6.05 | US$302.40+ |
Unit Cost : US$
Extended Cost : US$8.64
Specifications
| Product Type | Accessories |
|---|---|
| Brand | Flexa |
| Family | RQS |
| Part Number | 15030020048 |
| Part Number (Old) | 5030.020.048 |
| Colour | Grey |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 54.500 |
| Width A (mm) | 65.5 |
| Height (mm) | 69.5 |
| Thickness E (mm) | 17.0 |
| Mounting Hole Diameter (mm) | 6.5 |
| Weight (kg|100) | 2.5 |
| Package Size | 10 pcs |
| Low Temperature Rating (°C) | -40.0 |
| High Temperature Rating (°C) | 120.0 |
Data Sheet
Properties
- ribbed fixing for strain relief
- quick assembly by means of a hinged clip cap
- for use in combination with C-profile bar
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
- rated HB [UL94]
Applications
- Medium and Heavy Duty Applications
- Machine and Plant Constructions
- Insulated Electrical Installations
