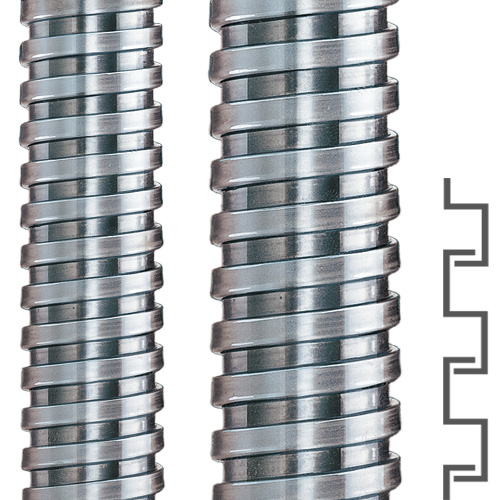

1018.801.010 / 11018801010 Flexa SPR-VA 10.0 x 13.0 mm “No-Stretch” ultra-flexible, micro-diameter, stainless steel conduit
The Flexa SPR-VA 11018801010 (Old Part Number 1018.801.010) is a 10.0 x 13.0 mm lightweight, ultra-flexible, micro-diameter “No-Stretch” conduit made of square-folded stainless steel.
Applications for SPR-VA micro-diameter no-stretch conduits:
The no-stretch feature makes it an ideal solution for protecting fine wires, cables, and fibre optic sensor bundles from breakage or tearing due to over extension or stretching of the protected bundle harness.
Suitable for MRO protective wiring, and ideal for OEM wire and fibre optic harness applications.
Use in industries like process control instrumentation, measuring & controlling apparatus, medical instruments, security CCTV wiring, furnace and oven wiring protection, temperature control equipment.
Features an extremely wide operating temperature range of: -200ºC to +600ºC.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$1,239.72 | US$1,239.72 |
| 2 | US$1,177.73 | US$2,355.47 |
| 5 | US$1,115.75 | US$5,578.74 |
| 10+ | US$1,053.76 | US$10,537.62+ |
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Special Protective Conduit |
| Brand | Flexa |
| Family | SPR-VA |
| Part Number | 11018801010 |
| Part Number (Old) | 1018.801.010 |
| Colour | Metallic |
| OD Outside Diameter (mm) | 13 |
| ID Inside Diameter (mm) | 10 |
| Static Bend Radius (mm) | 32 |
| Dynamic Bend Radius (mm) | 80 |
| Weight (kg|m) | 0.11 |
| Material | Stainless Steel |
| IP Rating | IP40 |
| Low Temperature Rating (°C) | -200 |
| High Temperature Rating (°C) | 600 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113207852 |
Data Sheet
Properties
- very flexible
- stretch resistant
- widely resistant to solvents and chemicals
Applications
- automation
- sensor technology
- fiber optic technology
- medical technology
- machinery and equipment
