0133.900.014 / 10133900014 Flexa PS-VA 4.5 x 7.0 mm silicone jacketed stainless steel helix small diameter conduit for fiber optics protection
The Flexa PS-VA 10133900014 (Old Part Number 0133.900.014) is a 4.5 x 7.0 mm small diameter conduit with a stainless steel helix and silicone jacket.
This PS-VA size is well suited to fiber optic bundles, sensor leads, and delicate wire assemblies that need protected routing in compact spaces, while providing slightly more internal capacity than the 4.0 x 6.5 mm version for somewhat larger bundle groupings.

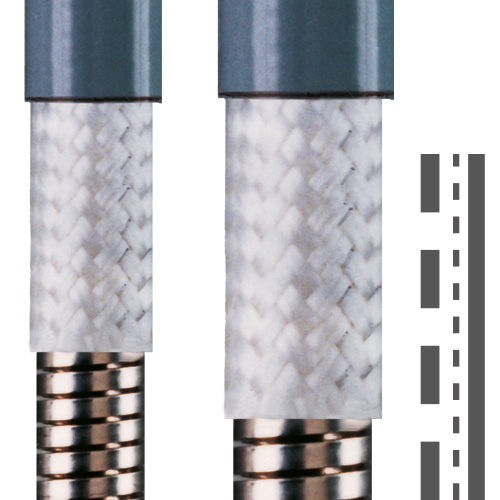

This autoclavable flexible micro-diameter conduit is constructed of a flat V2A, 304 AISI stainless steel mono-coil with fiber glass braiding and an FDA-conforming silicone jacket.
The specially formulated silicone jacket compound fulfills the material requirements of the following standards:
- FDA CFR title 21, Part 177.2600
- B f R XV, Silicone
- DIN ISO 10993, Bio-Compatibility
- USP Class VI, American Pharmacopeia
Applications:
Ideally suited for protecting medical fiber-optic scoping and lighting cables, as well as fiber optic sensor bundles used in food, pharmaceutical processing, and chemically sensitive applications.
Also suited to inspection and metrology fiberoptic cables, machine lighting, laser cutting fiber optic bundles, and high- or low-intensity backlighting illumination.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$0.00 | US$0.00 |
| 2 | US$0.00 | US$0.00 |
| 5 | US$0.00 | US$0.00 |
| 10 | US$0.00 | US$0.00 |
| 15 | US$0.00 | US$0.00 |
| 20+ | US$0.00 | US$0.00+ |
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Special Protective Conduit |
| Brand | Flexa |
| Family | PS-VA |
| Part Number | 10133900014 |
| Part Number (Old) | 0133.900.014 |
| Colour | Grey |
| OD Outside Diameter (mm) | 7 |
| ID Inside Diameter (mm) | 4.5 |
| Static Bend Radius (mm) | 25 |
| Dynamic Bend Radius (mm) | 65 |
| Weight (kg|m) | 0.072 |
| Material | Stainless Steel | Jacket: SI |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 180 |
| Extended Temperature (°C) | 200 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113177629 |
Data Sheet
Properties
- very flexible
- stretch resistant
- watertight
- low flammability
- widely resistant to solvents and chemicals
- free of silicone and cadmium
- UV resistant
Applications
- medical technology
- technical endoscopy
- sensor technology
