0133.900.007 / 10133900007 Flexa PS-VA 7.0 x 10.1 mm silicone jacketed stainless steel helix small diameter conduit for fiber optics protection
The Flexa PS-VA 10133900007 (Old Part Number 0133.900.007) is a 7.0 x 10.1 mm small diameter conduit with a stainless steel helix and silicone jacket.

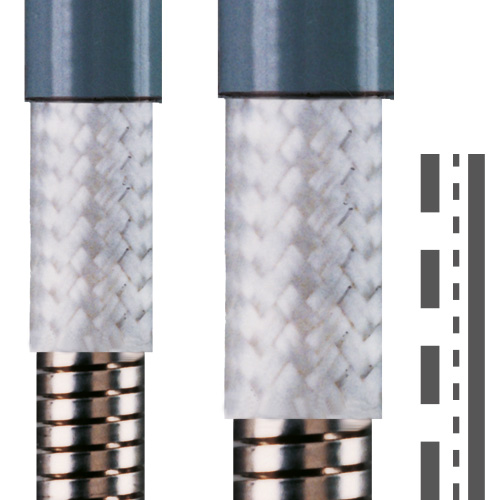

This autoclavable flexible micro-diameter conduit is constructed of a flat V2A, 304 AISI stainless steel monocoil with fiber glass braiding all covered by an FDA conforming silicone jacket.
The specially formulated silicone jacket compound fulfills the material requirements of the following standards:
- FDA CFR title 21, Part 177.2600
- B f R XV, Silicone
- DIN ISO 10993, Bio-Compatibility
- USP Class VI, American Pharmacopeia
Applications:
Ideally suited for use in protecting medical fiber-optic scoping & lighting cables as well as fiber optic sensor bundles in food & pharmaceutical processing, and chemically sensitive applications.
Inspection and metrology fibreoptic cables, machine lighting, laser cutting fiber optic bundles, high and low intensity back light illumination.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$0.00 | US$0.00 |
| 2 | US$0.00 | US$0.00 |
| 5 | US$0.00 | US$0.00 |
| 10 | US$0.00 | US$0.00 |
| 15 | US$0.00 | US$0.00 |
| 20+ | US$0.00 | US$0.00+ |
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Special Protective Conduit |
| Brand | Flexa |
| Family | PS-VA |
| Part Number | 10133900007 |
| Part Number (Old) | 0133.900.007 |
| Colour | Grey |
| OD Outside Diameter (mm) | 10.1 |
| ID Inside Diameter (mm) | 7 |
| Static Bend Radius (mm) | 45 |
| Dynamic Bend Radius (mm) | 110 |
| Weight (kg|m) | 0.141 |
| Material | Stainless Steel | Jacket: SI |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 180 |
| Extended Temperature (°C) | 200 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113104267 |
Data Sheet
Properties
- very flexible
- stretch resistant
- watertight
- low flammability
- widely resistant to solvents and chemicals
- free of silicone and cadmium
- UV resistant
Applications
- medical technology
- technical endoscopy
- sensor technology
Certifications
