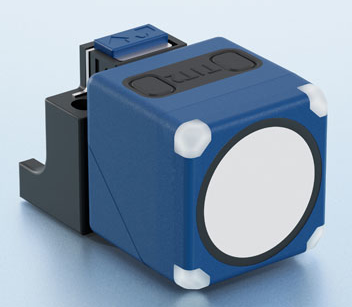

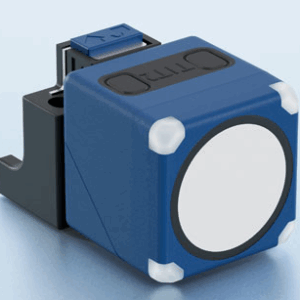

cube-340/FFIU Microsonic “Cube” Ultrasonic Sensor, 350 – 5000 mm range, adjustable 5 position sensing head, 2 x Push-Pull outputs, 1 x analog, IO-Link

The cube-340/FFIU is a 350 – 5000 mm range Microsonic “Cube” Miniature Ultrasonic Proximity and Distance Measurement Sensor, 2 x Push-Pull NO/NC output, 1 x analog 4-20 mA / 0-10 V, IO-Link.

Features:

• Unique rotating sensor head mounts in 5 different positions
• New! Features internal target alignment assistance for easy “spot-on” set-up
• Sensing range 350 – 5000 mm
• Analogue output: 0 – 10 V or 4-20 mA
• Digital output: 2 x Push-Pull NO/NC
• Status LED’s are visible in any mounting position
• Resolution of 1.0 mm
• IO-Link interface enabled
• Smart Sensor Profiles and LinkControl for configuration from a PC
• Programming by Teach-in push-buttons, IO-Link
• Very compact housing, only 40 mm x 40 mm x 40 mm
• Operating voltage 10 – 30 VDC
• PA plastic housing with IP67 sealing and M12 | 5 pin connection plug

Applications for miniature “Cube” ultrasonic sensors: The sub-compact sized cube-340/FFIU is an ideal sensor for conveyor systems, packaging machines, fill-level check, wafer board detection, labelling machines, sorting systems, small component detection, part bowl feeders, or any sensing application with limited installation space. Versatile & unique five (5) position sensing head provides many mounting options.
