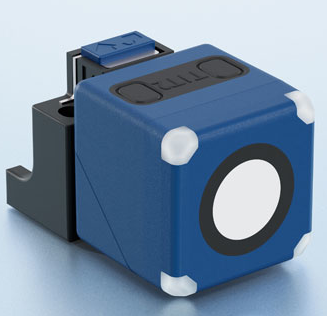

cube-130/F Microsonic “Cube” Ultrasonic Sensor, 200 – 2000 mm range, adjustable 5 position sensing head, Push-Pull output, IO-Link

The cube-130/F is a 200 – 2000 mm range Microsonic “Cube” Miniature Ultrasonic Proximity Sensor, Push-Pull NO/NC output, IO-Link.

Features:

• Unique rotating sensor head mounts in 5 different positions
• New! Features internal target alignment assistance for easy “spot-on” set-up
• Sensing range 200 – 2000 mm
• Digital output: 1 x Push-Pull NO/NC
• Status LED’s are visible in any mounting position
• Resolution of 0.224 mm
• IO-Link interface enabled
• Smart Sensor Profiles and LinkControl for configuration from a PC
• Programming by Teach-in push-buttons, IO-Link
• Very compact housing, only 40 mm x 40 mm x 40 mm
• Operating voltage 10 – 30 VDC
• PA plastic housing with IP67 sealing and M12 | 5 pin connection plug

Applications for miniature “Cube” ultrasonic sensors: The sub-compact sized cube-130/F is an ideal sensor for conveyor systems, packaging machines, fill-level check, wafer board detection, labelling machines, sorting systems, small component detection, part bowl feeders, or any sensing application with limited installation space. Versatile & unique five (5) position sensing head provides many mounting options.
