Mfr. Part # cube-130/FFIU Categories , ,

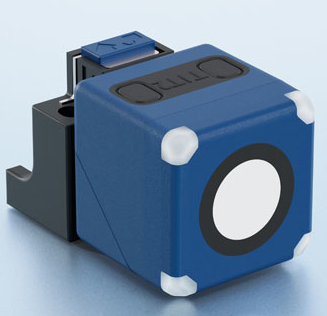

The cube-130/FFIU is a 200 – 2000 mm range Microsonic “Cube” Miniature Ultrasonic Proximity Sensor, 2 x Push-Pull NO/NC output, 1 x analog 4-20mA / 0-10 V, IO-Link.

Features include:

  • Unique rotating sensor head mounts in 5 different positions
  • LED display, visible in any mounting position
  • Sensing range 200 – 2000 mm
  • Analogue output: 0 – 10 V or 4-20 mA
  • Digital output: 2 x Push-Pull NO/NC
  • Resolution of 1.0 mm
  • IO-Link interface enabled
  • Smart Sensor Profiles
  • LinkControl for configuration from a PC
  • Very compact housing, only 40 mm x 40 mm x 40 mm
  • Programming by Teach-in push-buttons
  • Operating voltage 9 – 30 VDC
  • PA plastic housing with IP67 sealing and M12 | 5 pin connection
In Stock: 0
Factory Lead-Time: Can Ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$0.00 US$0.00+
Unit Cost : US$
Extended Cost : US$0
Add to Quote
