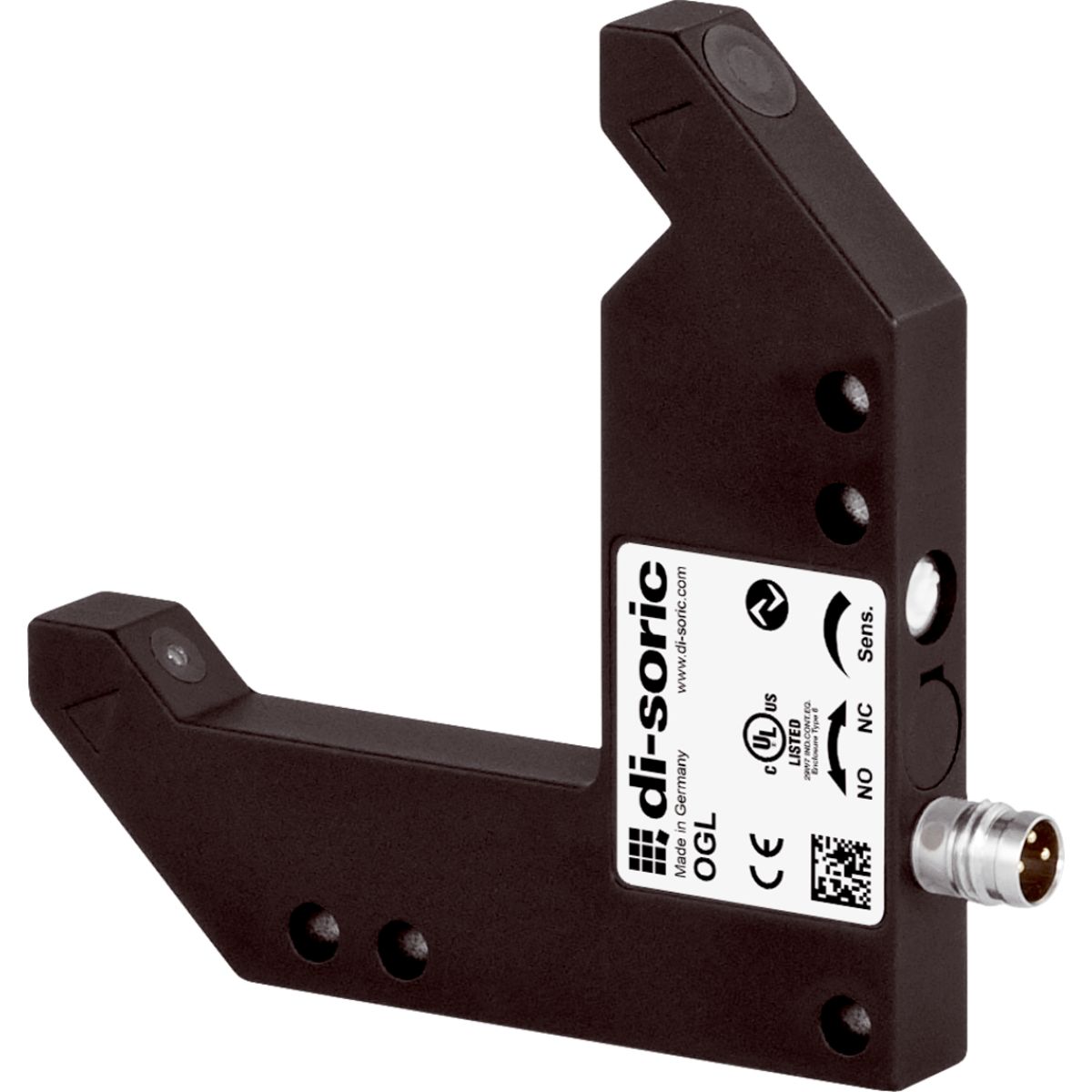

OGLL-051-G3-T3 di-soric 50 × 50 mm L-Shaped / Angled Fork Laser Light Barrier, Push/Pull 100 mA NO/NC, IO-Link

The OGLL-051-G3-T3 di-soric 50 × 50 mm L-shaped / angled fork laser light barrier is designed for high-precision object, edge, label, and small-part detection where very fine detection resolution is required. Its angled fork geometry provides a 50 mm fork opening with a 50 mm internal leg length, helping solve mounting and access constraints in compact packaging, assembly, handling, and automation equipment.

This model uses a visible red laser light source with 0.05 mm resolution, making it a strong choice for fine detection tasks where standard LED fork sensors may not provide enough resolution. The push/pull 100 mA NO/NC output, IO-Link interface, M8 3-pin connection, and IP67 zinc housing make the OGLL-051-G3-T3 well suited for precise sensing, setup flexibility, diagnostics, and repeatable operation in compact industrial automation layouts.

Key Features & Advantages

• 50 × 50 mm L-shaped fork geometry: Provides a 50 mm fork opening with 50 mm internal leg length for angled mounting around machine parts, conveyors, label paths, or handling areas.
• Visible red laser light source: Provides a focused sensing beam for precise detection and easier alignment in fine-positioning applications.
• 0.05 mm resolution: Supports very fine detection of small parts, edges, labels, webs, and other targets requiring high switching accuracy.
• Push/pull 100 mA NO/NC output: Flexible switching output for integration with common machine controls and PLC inputs.
• IO-Link interface: Enables parameterization, diagnostics, status monitoring, and simplified setup where IO-Link is used.
• 5000 Hz switching frequency: Suitable for high-speed counting, positioning, edge detection, and fast-moving automation processes.
• IP67 zinc housing with M8 3-pin connection: Rugged compact construction for machine-mounted industrial sensor installations.

Typical Applications

• Fine edge and label detection on packaging, converting, and print machinery
• Small-part detection in assembly and handling systems
• High-precision part presence and position sensing
• Detection of thin edges, webs, or small target features
• Counting and verification of small parts in compact automation equipment
• Object detection where an angled or L-shaped sensor body improves access
• Applications requiring finer resolution than standard LED fork sensors

Ideal For

The OGLL-051-G3-T3 is well suited for OEMs, machine builders, MRO teams, and system integrators that need a compact 50 × 50 mm di-soric angled fork laser light barrier with very fine 0.05 mm resolution, push/pull output, IO-Link capability, and precise detection performance.
