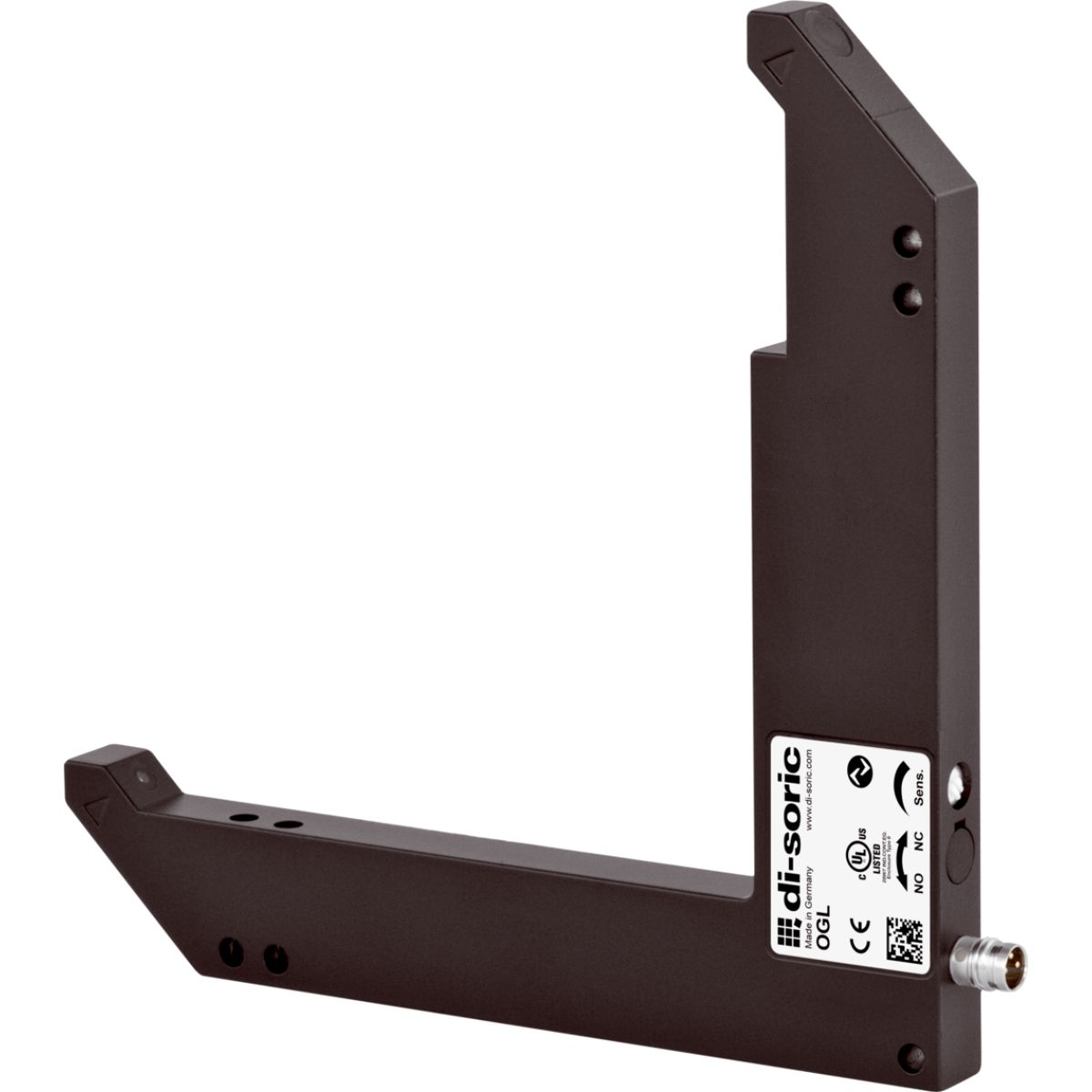

OGL-121-G3-T3 di-soric 120 x 120 mm L-Shaped / Angled Fork Visible Red Light Barrier, Push/Pull 100 mA NO/NC, IO-Link

The OGL-121-G3-T3 di-soric 120 × 120 mm L-shaped / angled fork visible red light barrier is designed for object, edge, label, and part detection where a large fork opening and extended product clearance are required. Its angled fork geometry provides a 120 mm fork opening with a 120 mm internal leg length, allowing the sensor to be mounted around wider product paths, larger guides, carriers, fixtures, or machine components where smaller fork sensors may not provide enough access.

This model uses a visible red LED light source with 0.5 mm resolution, making it well suited for reliable detection across a larger sensing window rather than ultra-fine small-part detection. The push/pull 100 mA NO/NC output, IO-Link interface, M8 3-pin connection, and IP67 zinc housing make the OGL-121-G3-T3 a strong choice where larger angled sensor geometry, setup flexibility, diagnostics, and dependable industrial switching are required.

Key Features & Advantages

• 120 × 120 mm L-shaped fork geometry: Provides a large 120 mm fork opening with 120 mm internal leg length for angled mounting around wider product paths, larger guides, carriers, fixtures, or machine components.
• Visible red LED light source: Helps with alignment and setup while providing reliable through-beam detection across the fork opening.
• 0.5 mm resolution: Supports dependable detection of edges, labels, parts, webs, and objects across a larger sensing window.
• Push/pull 100 mA NO/NC output: Flexible switching output for integration with common machine controls and PLC inputs.
• IO-Link interface: Enables parameterization, diagnostics, status monitoring, and simplified setup where IO-Link is used.
• 5000 Hz switching frequency: Suitable for high-speed counting, positioning, edge detection, and fast-moving automation processes.
• IP67 zinc housing with M8 3-pin connection: Rugged compact construction for machine-mounted industrial sensor installations.

Typical Applications

• Label and edge detection on packaging, converting, and print machinery
• Object detection across wider product paths or larger guide areas
• Part detection in assembly and handling systems with greater product clearance requirements
• Position sensing for larger carriers, fixtures, moving machine parts, or product guides
• Object detection where an angled or L-shaped sensor body improves access
• Counting, presence detection, and part verification in automation equipment
• Detection of opaque, reflective, and semi-transparent targets

Ideal For

The OGL-121-G3-T3 is well suited for OEMs, machine builders, MRO teams, and system integrators that need a large 120 × 120 mm di-soric angled fork light barrier with visible red LED sensing, push/pull output, IO-Link capability, and extended clearance for wider or more difficult mounting layouts.
