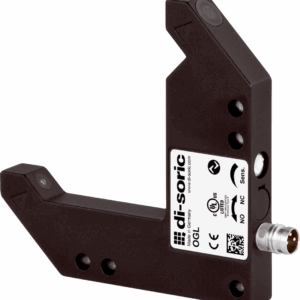

OGL-050-G3-T3 di-soric 50 x 50 mm L-Shaped / Angled Fork Infrared Light Barrier, Push/Pull 100 mA NO/NC, IO-Link

The OGL-050-G3-T3 di-soric 50 × 50 mm L-shaped / angled fork infrared light barrier is designed for reliable object, edge, label, and part detection where the sensor must be mounted around the process instead of directly in line with it. Its angled fork geometry provides a 50 mm fork opening with a 50 mm internal leg length, helping solve mounting and access constraints in compact packaging, assembly, handling, and automation equipment.

This model uses an infrared LED light source with 0.3 mm resolution, making it well suited for reliable sensing where visible light alignment is not required and where dust, oil mist, or contamination may be present in the application area. The push/pull 100 mA NO/NC output, IO-Link interface, M8 3-pin connection, and IP67 zinc housing make the OGL-050-G3-T3 a strong choice where compact angled sensor geometry, repeatable switching, setup flexibility, diagnostics, and durable industrial operation are required.

Key Features & Advantages

• 50 × 50 mm L-shaped fork geometry: Provides a 50 mm fork opening with 50 mm internal leg length for angled mounting around machine parts, conveyors, label paths, or handling areas.
• Infrared LED light source: Supports reliable object detection where visible light alignment is not required and where dusty, oily, or contamination-prone conditions may be present.
• 0.3 mm resolution: Supports fine detection of small parts, edges, labels, webs, and other targets requiring precise switching.
• Push/pull 100 mA NO/NC output: Flexible switching output for integration with common machine controls and PLC inputs.
• IO-Link interface: Enables parameterization, diagnostics, status monitoring, and simplified setup where IO-Link is used.
• 5000 Hz switching frequency: Suitable for high-speed counting, positioning, edge detection, and fast-moving automation processes.
• IP67 zinc housing with M8 3-pin connection: Rugged compact construction for machine-mounted industrial sensor installations.

Typical Applications

• Object detection in dusty, oily, or contamination-prone packaging and automation environments
• Label and edge detection on packaging, converting, and print machinery
• Small-part detection in assembly and handling systems
• Position sensing for moving machine parts, carriers, or product guides
• Object detection where an angled or L-shaped sensor body improves access
• Counting, presence detection, and part verification in compact automation equipment
• Detection of opaque, reflective, and semi-transparent targets

Ideal For

The OGL-050-G3-T3 is well suited for OEMs, machine builders, MRO teams, and system integrators that need a compact 50 × 50 mm di-soric angled fork infrared light barrier with fine resolution, push/pull output, IO-Link capability, and reliable sensing for industrial automation environments.
