Mfr. Part #
12031101048
Categories AIRflex-KUW-PVC-AS, IBIS AIRflex Conduit 10 Roll, Non-Corrugated, Plastic Conduits

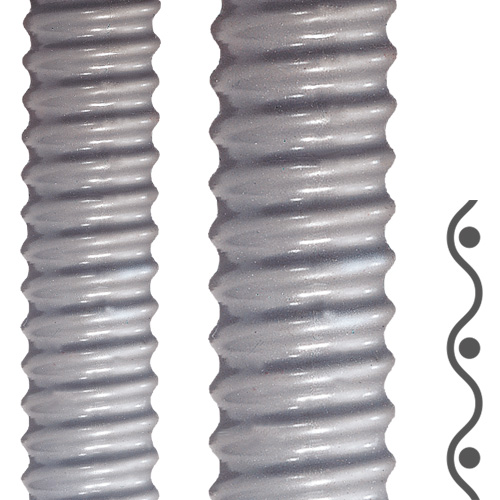

The Flexa AIRflex-KUW-PVC-AS 12031101048 (Old Part Number 2031.101.048) is a 48.0 x 56.0 mm Grey PVC sheathed, spiral steel wire reinforced liquidtight protective plastic conduit.
Small 10 metre (33 ft) length roll.
Excellent multi-purpose conduit for cable & wire protection in many applications including: machine building, railway industry, shipbuilding, robotics, automation wiring, and carrier guide chain solutions.
Material:
- spring steel wire helix with PVC sheathing
Also available on a 25 metre length coil, click here for part # 2030.101.048
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$740.19 | US$740.19 |
2+ | US$703.18 | US$1,406.36+ |
Unit Cost : US$
Extended Cost : US$740.19
Specifications
Package Size | 10m Per Roll |
---|---|
Product Type | Plastic Conduit |
Brand | Flexa |
Family | AIRflex-KUW-PVC-AS |
Part Number | 12031101048 |
Part Number (Old) | 2031.101.048 |
Colour | Grey |
OD Outside Diameter (mm) | 56 |
ID Inside Diameter (mm) | 48 |
Static Bend Radius (mm) | 40 |
Dynamic Bend Radius (mm) | 100 |
Weight (kg|m) | 0.8 |
Material | PVC Plastic |
IP Rating | IP68 |
Low Temperature Rating (°C) | -25 |
High Temperature Rating (°C) | 90 |
Extended Temperature (°C) | 100 |
Data Sheet
Properties
- extremely flexible
- airtight and liquid tight
- widely resistant to oil and acids
- free of silicone and cadmium
- inside protection against corrosion
- approved acc. to DIN EN ICE 61386-23
Applications
- Machine and Plant Constructions
- Automotive
- Shipbuilding
- Automation
- Electrical Installations
- Applications with Guide Chains
- Suitable as Suction Conduit
