2030.101.048 / 12030101048 Flexa AIRflex-KUW-PVC-AS 48.0 x 56.0 mm grey PVC sheathed, spiral steel wire reinforced liquidtight plastic conduit

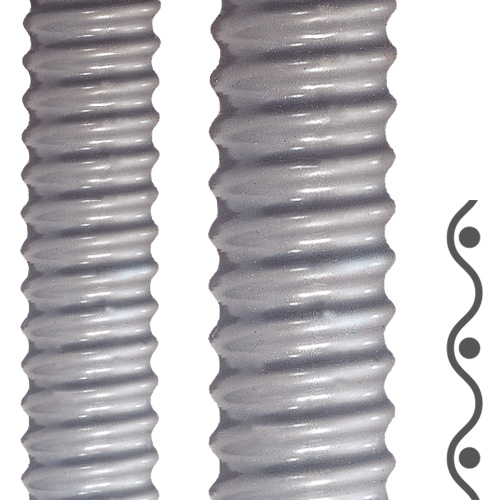

The Flexa AIRflex-KUW-PVC-AS 12030101048 (Old Part Number 2030.101.048) is a 48.0 x 56.0 mm Grey PVC sheathed, spiral steel wire reinforced liquidtight protective plastic conduit.
Excellent multi-purpose conduit for cable & wire protection in many applications including: machine building, railway industry, shipbuilding, robotics, automation wiring, and carrier guide chain solutions.
Material:
- spring steel wire helix with PVC sheathing
Also available on a shorter 10 metre length coil, click here for part # 2031.101.048
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$1,350.61 | US$1,350.61 |
| 2 | US$1,283.08 | US$2,566.16 |
| 5 | US$1,215.55 | US$6,077.75 |
| 10+ | US$1,148.02 | US$11,480.19+ |
Unit Cost : US$
Extended Cost : US$1350.61
Specifications
| Package Size | 25m (82 ft) per roll |
|---|---|
| Product Type | Plastic Conduit |
| Brand | Flexa |
| Family | AIRflex-KUW-PVC-AS |
| Part Number | 12030101048 |
| Part Number (Old) | 2030.101.048 |
| Colour | Grey |
| OD Outside Diameter (mm) | 56 |
| ID Inside Diameter (mm) | 48 |
| Static Bend Radius (mm) | 40 |
| Dynamic Bend Radius (mm) | 100 |
| Weight (kg|m) | 0.8 |
| Material | PVC Plastic |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -25 |
| High Temperature Rating (°C) | 90 |
| Extended Temperature (°C) | 100 |
| Customs Tariff Number | 3917.32.0050 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113132727 |
Data Sheet
Properties
- extremely flexible
- airtight and liquid tight
- widely resistant to oil and acids
- free of silicone and cadmium
- inside protection against corrosion
- approved acc. to DIN EN ICE 61386-23
Applications
- Machine and Plant Constructions
- Automotive
- Shipbuilding
- Automation
- Electrical Installations
- Applications with Guide Chains
- Suitable as Suction Conduit
Certifications
