Mfr. Part #
15601034242
Categories IBIS FLEXAquick Fitting 10 Pack, Plastic Body Fittings, RQGR, Union

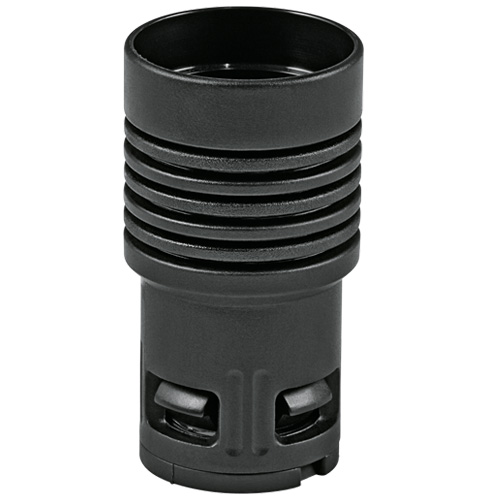

The Flexaquick® RQGR 15601034242 (Old Part Number 5601.034.242) is an adapter transition fitting that connects a larger 42.5 mm fitting with a smaller 34.5 mm OD conduit.
It features the Flexaquick® quick connect system with an integrated lock & release sleeve and built-in IP68 sealing. Installs in seconds for Quick “on” assembly or Quick “off” disassembly. NO tools required!
Usable with all FLEXAquick® conduit fittings of matching conduit diameters.
Use with all fine or coarse corrugation plastic conduits of matching outside diameter (OD).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$21.44 | US$21.44 |
5 | US$19.30 | US$96.48 |
10 | US$17.15 | US$171.52 |
20 | US$16.08 | US$321.60 |
50+ | US$15.01 | US$750.40+ |
Unit Cost : US$
Extended Cost : US$21.44
Specifications
Product Type | Plastic Body Fitting |
---|---|
Brand | Flexa |
Family | RQGR |
Part Number | 15601034242 |
Part Number (Old) | 5601.034.242 |
Colour | Black |
Body Length D (mm) | 75. 0 |
Material | PA6 Plastic |
OD 1 (mm) | 34. 5 |
OD 2 (mm) | 42. 5 |
ΦI Inside Diameter (mm) | 30. 0 |
ΦB1 (mm) | 44. 0 |
Weight (kg|100) | 3.8 |
Package Size | 10 pcs |
IP Rating | IP 68 | IP 69K |
Low Temperature Rating (°C) | -40 |
High Temperature Rating (°C) | 120 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- For Static and Dynamic Applications Indoor and Outdoor
- Heavy Machine and Plant Construction
- Insulated Electrical Installations
