5601.015.234 / 15601015234 RQGR 34.5 mm to 15.8 mm FLEXAquick® adapter fitting transitions a larger fitting to a smaller diameter conduit

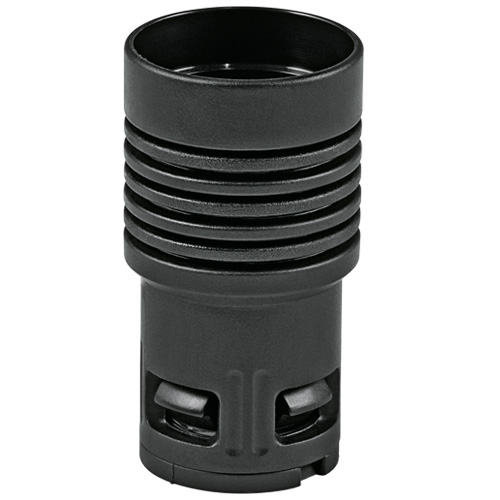

The Flexaquick® RQGR 15601015234 (Old Part Number 5601.015.234) is an adapter transition fitting that connects a larger 34.5 mm fitting with a smaller 15.8 mm OD conduit.
It features the Flexaquick® quick connect system with an integrated lock & release sleeve and built-in IP68 sealing. Installs in seconds for Quick “on” assembly or Quick “off” disassembly. NO tools required!
Usable with all FLEXAquick® conduit fittings of matching conduit diameters.
Use with all fine or coarse corrugation plastic conduits of matching outside diameter (OD).
In Stock: 18
Stock: 18 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
18 in stock
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$19.08 | US$19.08 |
| 5 | US$17.17 | US$85.86 |
| 10 | US$15.26 | US$152.64 |
| 20 | US$14.31 | US$286.20 |
| 50 | US$13.36 | US$667.80 |
| 100+ | US$12.40 | US$1,240.20+ |
Unit Cost : US$
Extended Cost : US$19.08
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGR |
| Part Number | 15601015234 |
| Part Number (Old) | 5601.015.234 |
| Colour | Black |
| Body Length D (mm) | 60. 0 |
| Material | PA6 Plastic |
| OD 1 (mm) | 15. 8 |
| OD 2 (mm) | 34. 5 |
| ΦI Inside Diameter (mm) | 13. 5 |
| ΦB1 (mm) | 23. 0 |
| Weight (kg|100) | 1.7 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113212146 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- For Static and Dynamic Applications Indoor and Outdoor
- Heavy Machine and Plant Construction
- Insulated Electrical Installations
Certifications
