Mfr. Part #
15601013221
Categories IBIS FLEXAquick Fitting 10 Pack, Plastic Body Fittings, RQGR, Union

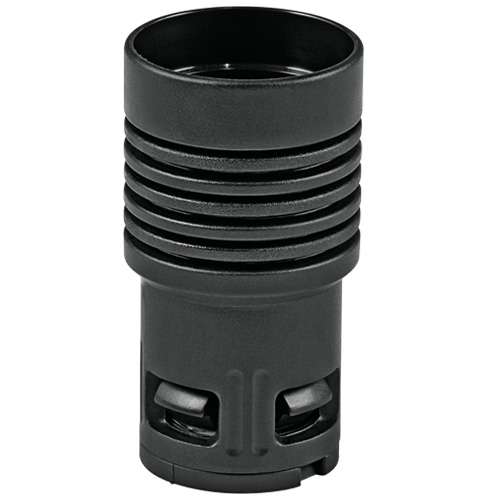

The Flexaquick® RQGR 15601013221 (Old Part Number 5601.013.221) is an adapter transition fitting that connects a larger 21.2 mm fitting with a smaller 13.0 mm OD conduit.
It features the Flexaquick® quick connect system with an integrated lock & release sleeve and built-in IP68 sealing. Installs in seconds for Quick “on” assembly or Quick “off” disassembly. NO tools required!
Usable with all FLEXAquick® conduit fittings of matching conduit diameters.
Use with all fine or coarse corrugation plastic conduits of matching outside diameter (OD).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$17.01 | US$17.01 |
5 | US$15.31 | US$76.55 |
10 | US$13.61 | US$136.08 |
20 | US$12.76 | US$255.15 |
50+ | US$11.91 | US$595.35+ |
Unit Cost : US$
Extended Cost : US$17.01
Specifications
Product Type | Plastic Body Fitting |
---|---|
Brand | Flexa |
Family | RQGR |
Part Number | 15601013221 |
Part Number (Old) | 5601.013.221 |
Colour | Black |
Body Length D (mm) | 60. 5 |
Material | PA6 Plastic |
OD 1 (mm) | 13. 0 |
OD 2 (mm) | 21. 2 |
ΦI Inside Diameter (mm) | 10. 0 |
ΦB1 (mm) | 20. 0 |
Weight (kg|100) | 0.9 |
Package Size | 10 pcs |
IP Rating | IP 68 | IP 69K |
Low Temperature Rating (°C) | -40 |
High Temperature Rating (°C) | 120 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- For Static and Dynamic Applications Indoor and Outdoor
- Heavy Machine and Plant Construction
- Insulated Electrical Installations
