5020.064.050 / 15020064050 RQW-M M50 x 1.5 mm Metric FLEXAquick® Grey 90 degree elbow connector for 54.5 mm OD conduit, IP68 sealing

Product Name:
5020.064.050 / 15020064050 RQW-M M50 x 1.5 mm Metric FLEXAquick® Grey 90 degree elbow connector for 54.5 mm OD conduit, IP68 sealing

Flexa Logo
Mfr. Part # 15020064050 Categories , , ,

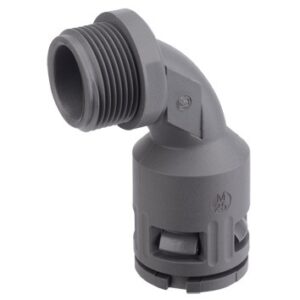

The Flexaquick® RQW-M 15020064050 (Old Part Number 5020.064.050) is a Grey plastic 90° elbow conduit connector with metric M50 x 1.5 mm outer thread.

It features the Flexaquick® quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

This conduit connector installs in seconds for “Quick connect on” fitting and conduit assembly or “Quick disconnect off” fitting and conduit disassembly. NO tools required!

Use the RQW-M with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Find the right conduit solution from over 20 varieties of ROHRflex® corrugated nylon PA6, PA12 and multi-layer conduits.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$49.29 US$49.29
5 US$39.43 US$197.16
10 US$38.45 US$384.46
25 US$36.97 US$924.19
50 US$34.50 US$1,725.15
100+ US$32.04 US$3,203.85+
Unit Cost : US$
Extended Cost : US$49.29
Add to Quote

Specifications

Package Size

5 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQW-M
Part Number

15020064050
Part Number (Old)

5020.064.050
Colour

Grey
Thread Type

Metric
Thread Size

M50 x 1.5
Thread Length C (mm)

15
Body Length D (mm)

94
Body Length E (mm)

84
Material

PA6 Plastic
OD Outside Diameter (mm)

54.5
ΦI Inside Diameter (mm)

39
ΦB Max Outer Diameter (mm)

64
Weight (kg|100)

11.4
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113174055

Data Sheet

Properties

  • resistant against oil and benzine
  • highly resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations
