5020.064.025 / 15020064025 RQW-M M25 x 1.5 mm Metric FLEXAquick® Grey 90 degree elbow connector for 28.5 mm OD conduit, IP68 sealing

Product Name:
5020.064.025 / 15020064025 RQW-M M25 x 1.5 mm Metric FLEXAquick® Grey 90 degree elbow connector for 28.5 mm OD conduit, IP68 sealing

Flexa Logo
Mfr. Part # 15020064025 Categories , , ,

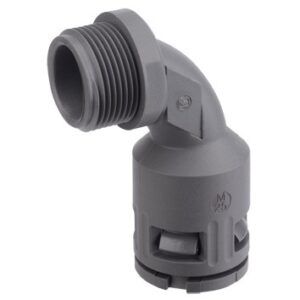

The Flexaquick® RQW-M 15020064025 (Old Part Number 5020.064.025) is a Grey plastic 90° elbow conduit connector with metric M25 x 1.5 mm outer thread.

It features the Flexaquick® quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

This conduit connector installs in seconds for “Quick connect on” fitting and conduit assembly or “Quick disconnect off” fitting and conduit disassembly. NO tools required!

Use the RQW-M with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Find the right conduit solution from over 20 varieties of ROHRflex® corrugated nylon PA6, PA12 and multi-layer conduits.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$17.95 US$17.95
5 US$17.41 US$87.06
10 US$17.05 US$170.53
15 US$16.16 US$242.33
20 US$15.26 US$305.15
25 US$14.36 US$359.00
50 US$13.46 US$673.13
100 US$12.57 US$1,256.50
250+ US$11.67 US$2,916.88+
Unit Cost : US$
Extended Cost : US$17.95
Add to Quote

Specifications

Package Size

25 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQW-M
Part Number

15020064025
Part Number (Old)

5020.064.025
Colour

Grey
Thread Type

Metric
Thread Size

M25 x 1.5
Thread Length C (mm)

13
Body Length D (mm)

57
Body Length E (mm)

57
Material

PA6 Plastic
OD Outside Diameter (mm)

28.5
ΦI Inside Diameter (mm)

19
ΦB Max Outer Diameter (mm)

37
Weight (kg|100)

3.1
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113174024

Data Sheet

Properties

  • resistant against oil and benzine
  • highly resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations

Certifications
