4” – 16 UNEF female thread FLEXAquick backshell connector for 42.5 mm OD conduit

Product Name:
5020.047.237 / 15020047237 RQG2-U 2 1/4” – 16 UNEF female thread FLEXAquick backshell connector for 42.5 mm OD conduit

Mfr. Part # 15020047237 Categories IBIS FLEXAquick Fitting 10 Pack, Plastic Body Fitting, Plastic Female Inner Thread, RQG2-U

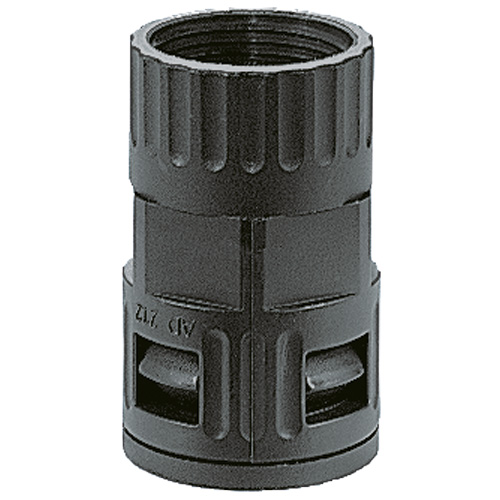

The Flexaquick RQG2-U 15020047237 (Old Part Number 5020.047.237) is a straight plastic conduit connector with 2 1/4″ -16 UNEF inner thread.

It features the Flexaquick quick connect system with an integrated lock & release sleeve and built-in sealing. Installs in seconds for Quick “on” assembly, or Quick “off” disassembly. NO tools required!

In Stock: 0

Stock: 0 can ship immediately

Factory Lead-Time: Can ship in 1-2 weeks

Minimum: 1

Multiples: 1

Quantity	Unit Price	Ext. Price
1	CAD$24.64	CAD$24.64
5	CAD$22.17	CAD$110.87
10	CAD$19.71	CAD$197.09
20	CAD$18.48	CAD$369.55
50+	CAD$17.25	CAD$862.29+

Unit Cost : CAD$

Extended Cost : CAD$24.6368

Specifications

Product Type	Plastic Body Fitting
Brand	Flexa
Family	RQG2-U
Part Number	15020047237
Part Number (Old)	5020.047.237
Colour	Black
Thread Type	UNEF
Thread Size	2 1/4" -16
Thread Length C (mm)	18
Body Length D (mm)	70
Material	PA6 Plastic
OD Outside Diameter (mm)	42.5
ΦI Inside Diameter (mm)	30.5
ΦB Max Outer Diameter (mm)	66.5
ΦB1 (mm)	66.5
Weight (kg\|100)	5.5
Package Size	50 pcs
IP Rating	IP 68 \| IP 69K
Low Temperature Rating (°C)	-40
High Temperature Rating (°C)	120
