5020.047.218 / 15020047218 RQG2-U 1 7/16” – 18 UNEF female thread FLEXAquick backshell connector for 34.5 mm OD conduit

Product Name:
5020.047.218 / 15020047218 RQG2-U 1 7/16” – 18 UNEF female thread FLEXAquick backshell connector for 34.5 mm OD conduit

Flexa Logo
Mfr. Part # 15020047218 Categories , , ,

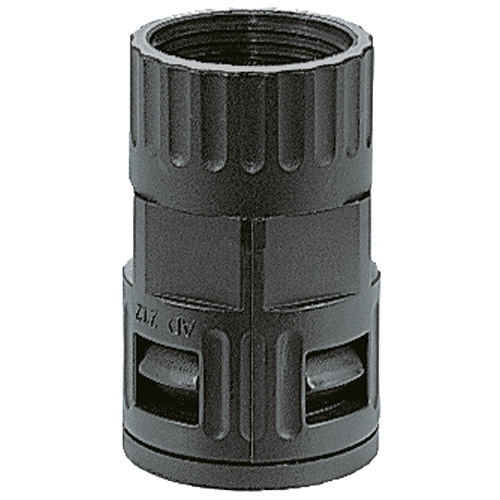

The Flexaquick RQG2-U 15020047218 (Old Part Number 5020.047.218) is a straight plastic conduit backshell adapter connector with 1 7/16″ – 18 UNEF female inner thread designed for use with MIL-C5015 CPC circular connectors.

It features the Flexaquick quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

Installs in seconds for “Quick connect on” fitting and conduit assembly or “Quick disconnect off” fitting and conduit disassembly. NO tools required!

Use with all fine or coarse corrugation plastic conduits of matching outside diameter (OD).

The RQG2-U adapts corrugated plastic conduits to MIL-C5015 type circular connectors such as: AMP CPC series, Amphenol, ITT Cannon-Trident, Souriau UTO, UTS, and UTG-6 series, TE DEUTSCH AFD series, and other circular connectors with UNEF thread connections.

In Stock: 23
Stock: 23 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1

23 in stock

Quantity Unit Price Ext. Price
1 US$15.34 US$15.34
5 US$13.81 US$69.03
10 US$12.27 US$122.72
20 US$11.51 US$230.10
50 US$10.74 US$536.90
100+ US$9.97 US$997.10+
Unit Cost : US$
Extended Cost : US$15.34
Add to Quote

Specifications

Package Size

10 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQG2-U
Part Number

15020047218
Part Number (Old)

5020.047.218
Colour

Black
Thread Type

UNEF
Thread Size

1 7/16" -18, Shell size 24
Thread Length C (mm)

9.5
Body Length D (mm)

55
Material

PA6 Plastic
OD Outside Diameter (mm)

34.5
ΦI Inside Diameter (mm)

30.5
ΦB Max Outer Diameter (mm)

44
ΦB1 (mm)

44
Weight (kg|100)

2.8
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113149343

Data Sheet

Properties

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • Machine and Plant Constructions
  • Automation
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Electrical Installations
