Flexa Multi-GFP 5032.206.070 / 15032206070 Black one-piece flanged straight connector for 79.2 mm OD conduits like ROHRflex-MULTI

Product Name:
Flexa Multi-GFP 5032.206.070 / 15032206070 Black one-piece flanged straight connector for 79.2 mm OD conduits like ROHRflex-MULTI

Flexa Logo
Mfr. Part # 15032206070 Categories , , ,

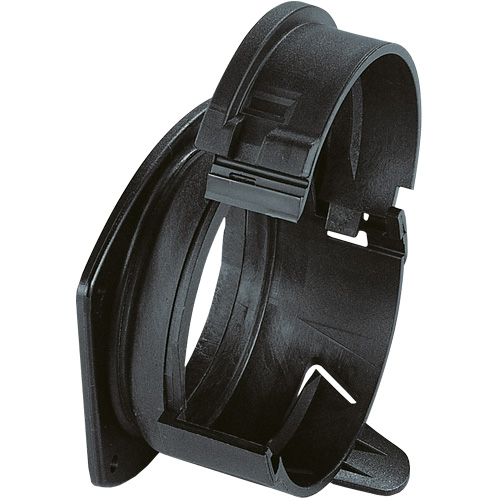

The Flexa Multi-GFP 15032206070 (Old Part Number 5032.206.070) is a Black one-piece flanged straight conduit connector for large 79.2 mm diameter cable buncher trunking conduits like the ROHRflex-MULTI.

The standard Multi-GFP has a sealing level of IP54.

For IP65 level of sealing, add the optional Multi-FRM, part # 15032208070 sealing kit.

For IP68 level of sealing, add the optional Multi-FRM, part # 15032211070 sealing kit.



In Stock: 5
Stock: 5 can ship immediately
Factory Lead-Time: Can ship in 1 – 2 weeks
Minimum: 1
Multiples: 1

5 in stock

Quantity Unit Price Ext. Price
1+ US$51.91 US$51.91+
Unit Cost : US$
Extended Cost : US$51.91
Add to Quote

Specifications

Package Size

1 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

Multi-GFP
Part Number

15032206070
Part Number (Old)

5032.206.070
Colour

Black
Material

PA6 Plastic
OD Outside Diameter (mm)

70. 0
Weight (kg|100)

10.8
IP Rating

IP 54 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Flange Size

96. 0
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113199096

Data Sheet

Properties

  • resistant against several oils and benzines
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • self-extinguishing
  • flame resistant
  • UV-resistant
  • for higher protective system IP 65, IP 68, IP 69K special sealings are available

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations
