Showing all 15 results

5020.092.203 / 15020092203 RQG2-T Trapezoidal T17.4 x 1.5 mm female thread Black FLEXAquick® backshell connector for 15.8 mm OD conduit, IP68 sealing
Add to cartAdd to Quote

5020.092.203 / 15020092203 RQG2-T Trapezoidal T17.4 x 1.5 mm female thread Black FLEXAquick® backshell connector for 15.8 mm OD conduit, IP68 sealing

The FLEXA RQG2-T 5020.092.203 / 15020092203 is a Trapezoidal T17.4 x 1.5 mm female thread Black backshell connector for 15.8 mm OD conduit.

It features the Flexaquick® quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

This conduit connector installs in seconds for “Quick connect on” fitting and conduit assembly or “Quick disconnect off” fitting and conduit disassembly. NO tools required!

The RQG2-T is compatible with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Browse over 20 varieties of innovative ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.

5020.092.207 / 15020092207 RQG2-T Trapezoidal T20.5 x 2.0 mm female thread Black FLEXAquick® backshell connector for 21.2 mm OD conduit, IP68 sealing
Add to cartAdd to Quote

5020.092.207 / 15020092207 RQG2-T Trapezoidal T20.5 x 2.0 mm female thread Black FLEXAquick® backshell connector for 21.2 mm OD conduit, IP68 sealing

The FLEXA RQG2-T 5020.092.207 / 15020092207 is a Trapezoidal T20.5 x 2.0 mm female thread Black FLEXAquick® backshell connector for 21.2 mm OD conduit.

It features the Flexaquick® quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

This conduit connector installs in seconds for “Quick connect on” fitting and conduit assembly or “Quick disconnect off” fitting and conduit disassembly. NO tools required!

The RQG2-T is compatible with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Browse over 20 varieties of innovative ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.

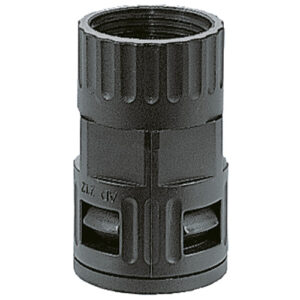

5020.092.208 / 15020092208 RQG2-T Trapezoidal T23.0 x 2.0 mm female thread Black FLEXAquick® backshell connector for 21.2 mm OD conduit, IP68 sealing
Add to cartAdd to Quote

5020.092.208 / 15020092208 RQG2-T Trapezoidal T23.0 x 2.0 mm female thread Black FLEXAquick® backshell connector for 21.2 mm OD conduit, IP68 sealing

The FLEXA RQG2-T 5020.092.208 / 15020092208 is a Trapezoidal T23.0 x 2.0 mm female thread Black FLEXAquick® backshell connector for 21.2 mm OD conduit.

It features the Flexaquick® quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

This conduit connector installs in seconds for “Quick connect on” fitting and conduit assembly or “Quick disconnect off” fitting and conduit disassembly. NO tools required!

The RQG2-T is compatible with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Browse over 20 varieties of innovative ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.

5020.092.210 / 15020092210 RQG2-T Trapezoidal T20.5 x 2.0 mm female thread Black FLEXAquick® backshell connector for 15.8 mm OD conduit, IP68 sealing
Add to cartAdd to Quote

5020.092.210 / 15020092210 RQG2-T Trapezoidal T20.5 x 2.0 mm female thread Black FLEXAquick® backshell connector for 15.8 mm OD conduit, IP68 sealing

The FLEXA RQG2-T 5020.092.210 / 15020092210 is a Trapezoidal T20.5 x 2.0 mm female thread Black FLEXAquick® backshell connector for 15.8 mm OD conduit, IP68 sealing.

It features the Flexaquick® quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

This conduit connector installs in seconds for “Quick connect on” fitting and conduit assembly or “Quick disconnect off” fitting and conduit disassembly. NO tools required!

The RQG2-T is compatible with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Browse over 20 varieties of innovative ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.

5020.092.212 / 15020092212 RQG2-T Trapezoidal T23.0 x 2.0 mm female thread Black FLEXAquick® backshell connector for 15.8 mm OD conduit, IP68 sealing
Add to cartAdd to Quote

5020.092.212 / 15020092212 RQG2-T Trapezoidal T23.0 x 2.0 mm female thread Black FLEXAquick® backshell connector for 15.8 mm OD conduit, IP68 sealing

The FLEXA RQG2-T 5020.092.212 / 15020092212 is a Trapezoidal T23.0 x 2.0 mm female thread Black FLEXAquick® backshell connector for 15.8 mm OD conduit.

It features the Flexaquick® quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

This conduit connector installs in seconds for “Quick connect on” fitting and conduit assembly or “Quick disconnect off” fitting and conduit disassembly. NO tools required!

The RQG2-T is compatible with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Browse over 20 varieties of innovative ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.

Flexa Multi-GFP 5032.006.070 / 15032006070 Grey one-piece flanged straight connector for 79.2 mm OD conduits like ROHRflex-MULTI
Add to cartAdd to Quote

Flexa Multi-GFP 5032.006.070 / 15032006070 Grey one-piece flanged straight connector for 79.2 mm OD conduits like ROHRflex-MULTI

The Flexa Multi-GFP 15032006070 (Old Part Number 5032.006.070) is a Grey one-piece flanged straight conduit connector for large 79.2 mm diameter cable buncher trunking conduits like the ROHRflex-MULTI.

The standard Multi-GFP has a sealing level of IP54.

For IP65 level of sealing, add the optional Multi-FRM, part # 15032208070 sealing kit.

For IP68 level of sealing, add the optional Multi-FRM, part # 15032211070 sealing kit.

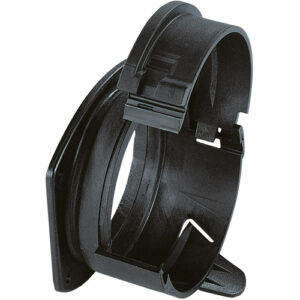

Flexa Multi-GFP 5032.206.070 / 15032206070 Black one-piece flanged straight connector for 79.2 mm OD conduits like ROHRflex-MULTI
Add to cartAdd to Quote

Flexa Multi-GFP 5032.206.070 / 15032206070 Black one-piece flanged straight connector for 79.2 mm OD conduits like ROHRflex-MULTI

The Flexa Multi-GFP 15032206070 (Old Part Number 5032.206.070) is a Black one-piece flanged straight conduit connector for large 79.2 mm diameter cable buncher trunking conduits like the ROHRflex-MULTI.

The standard Multi-GFP has a sealing level of IP54.

For IP65 level of sealing, add the optional Multi-FRM, part # 15032208070 sealing kit.

For IP68 level of sealing, add the optional Multi-FRM, part # 15032211070 sealing kit.

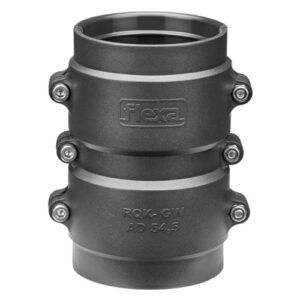

Flexa RQK-GW-PA 5609.042.242 / 15609042242 Conduit repair & retrofit union fitting sleeve kit for 42.5 mm OD corrugated conduits
Add to cartAdd to Quote

Flexa RQK-GW-PA 5609.042.242 / 15609042242 Conduit repair & retrofit union fitting sleeve kit for 42.5 mm OD corrugated conduits

The Flexa RQK-GW-PA 15609042242 (Old Part Number 5609.042.242) is a 42.5 mm OD corrugated conduit union fitting sleeve kit consisting of two half shells with integrated IP68 TPE-sealing and self-locking screws (included).

Applications: The RQK-GW-PA union fitting was designed as a repair and retrofit solution for pre-installed cable and wire harness assemblies. It mounts easily by clamping around the outside of the corrugated conduit. Railway, bus and public transit vehicle approved: V0 acc. to UL 94, EN 45545-2 (HL3).

Flexa RQK-GW-PA 5609.054.254 / 15609054254 Conduit repair & retrofit union fitting sleeve kit for 54.5 mm OD corrugated conduits
Add to cartAdd to Quote

Flexa RQK-GW-PA 5609.054.254 / 15609054254 Conduit repair & retrofit union fitting sleeve kit for 54.5 mm OD corrugated conduits

The Flexa RQK-GW-PA 15609054254 (Old Part Number 5609.054.254) is a 54.5 mm OD corrugated conduit union fitting sleeve kit consisting of two half shells with integrated IP68 TPE-sealing and self-locking screws (included).

Applications: The RQK-GW-PA union fitting was designed as a repair and retrofit solution for pre-installed cable and wire harness assemblies. It mounts easily by clamping around the outside of the corrugated conduit. Railway, bus and public transit vehicle approved: V0 acc. to UL 94, EN 45545-2 (HL3).
