Flexa USW-PG 5010.230.029 / 15010230029

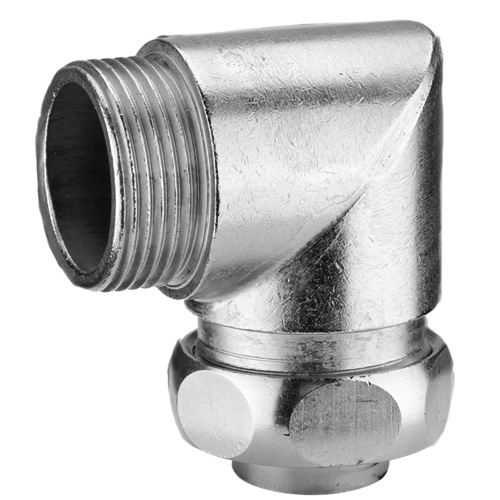

The Flexa USW-PG 15010230029 (Old Part Number 5010.230.029) is described as a metal connector, safety-type, 90° elbow, PG PG29 outer thread, including ferrule [brass], sealing and O-ring [NBR].
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$163.53 | US$163.53 |
| 5 | US$147.18 | US$735.89 |
| 10+ | US$130.82 | US$1,308.24+ |
Unit Cost : US$
Extended Cost : US$163.53
Specifications
| Product Type | Metal Body Fitting |
|---|---|
| Brand | Flexa |
| Family | USW-PG |
| Part Number | 15010230029 |
| Part Number (Old) | 5010.230.029 |
| Fits Conduit Types | AIRflex-GRS, AIRflex-K, AIRflex-KUW-PU-AS, AIRflex-KUW-PVC-AS |
| Thread Type | PG |
| Thread Size | PG29 |
| Thread Length C (mm) | 11 |
| Body Length D (mm) | 72 |
| Material | Ni-Brass |
| OD Outside Diameter (mm) | 36 |
| ΦI Inside Diameter (mm) | 26.5 |
| ΦB Max Outer Diameter (mm) | 48 |
| Weight (kg|100) | 20.7 |
| Package Size | 10 pcs |
| IP Rating | IP 54 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 125 |
Data Sheet
Properties
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- correct grounding
- covering of the conduit ends
- vibration and tension proof
Applications
- machine and plant constructions
- automotive
- railway industry
- automation
- shipbuilding
- electrical installations
Certifications
