5020.020.216 / 15020020216 Flexa RQM 1 x 21.2 mm heavy-duty mounting clamp for corrugated plastic conduits

Product Name:
5020.020.216 / 15020020216 Flexa RQM 1 x 21.2 mm heavy-duty mounting clamp for corrugated plastic conduits

Flexa Logo
Mfr. Part # 15020020216 Categories , , ,

The Flexa RQM 15020020216 (Old Part Number 5020.020.216) is a 1 x 21.2 mm OD heavy-duty mounting clamp for use with corrugated plastic conduits like ROHRflex.

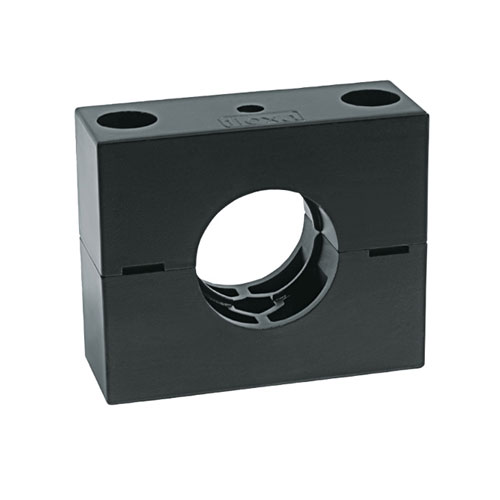

The two-piece block-style clamp installs easily anywhere using two M6 bolts (sold separately). Lateral conduit strain relief is also provided by an internal rib which locks firmly into a single conduit corrugation groove.

Use the RQM with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.

Applications for the RQM conduit clamp: This clamp is ideal for heavy duty securing of conduits on passenger rail car rooftops and undercarriages, as well as for mounting robot and cobot dress kits. It ensures conduits remain securely in place while providing lateral strain relief. The RQM family of mounting clamps, ranging from single to quad conduit configurations, are both stackable and combinable.





In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 5 – 7 days
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$6.38 US$6.38
5 US$5.74 US$28.71
10 US$5.10 US$51.04
20 US$4.79 US$95.70
50 US$4.47 US$223.30
100+ US$4.15 US$414.70+
Unit Cost : US$
Extended Cost : US$6.38
Add to Quote

Specifications

Package Size

10 pcs
Product Type

Accessories
Brand

Flexa
Family

RQM
Part Number

15020020216
Part Number (Old)

5020.020.216
Colour

Black
Material

PA6 Plastic
OD Outside Diameter (mm)

21.2
Width A (mm)

65
Height (mm)

66
D (mm)

33
Thickness E (mm)

30
Mounting Hole Diameter (mm)

6.5
Weight (kg|100)

7.9
Low Temperature Rating (°C)

-40.0
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113213624

Data Sheet

Properties

  • fastening mounting hole
  • ribbed fixing for strain relief
  • assembly of varying sizes joined in line or on top of each other
  • for use in combining with C-profile bar
  • rated V2 [UL94]

Applications

  • Heavy Duty Applications
  • Machine and Plant Constructions
  • Insulated Electrical Installations

Certifications
