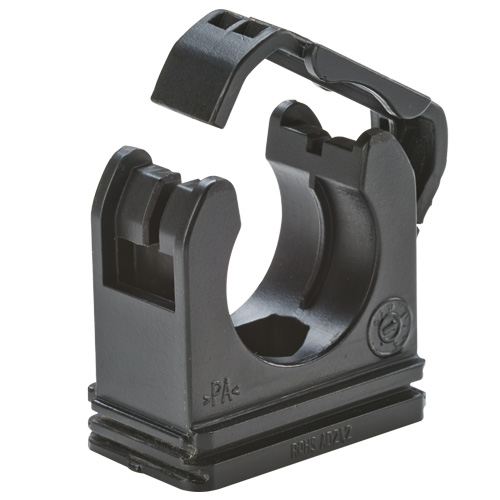

The Flexa RQS 15030020209 (Old Part Number 5030.020.209) is a Black 13.0 mm OD one-piece medium duty nylon plastic conduit clip with an integrated hinged clip cap.

Installation is simple using a single mounting screw or onto a C-profile bar. Conduits snap into the clip and the hinged clip cap locks-in the conduit.

Lateral strain relief is also provided by an internal rib which locks firmly into a single conduit corrugation.

Use with all fine or coarse corrugation plastic conduits of matching outside diameter (OD).

In Stock: 204
Stock: 204 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1

204 in stock

Quantity Unit Price Ext. Price
1 US$3.42 US$3.42
5 US$3.32 US$16.59
10 US$3.25 US$32.49
15 US$3.08 US$46.17
25 US$2.91 US$72.68
50 US$2.74 US$136.80
100 US$2.57 US$256.50
250+ US$2.39 US$598.50+
Unit Cost : US$
Extended Cost : US$3.42
Add to Quote

Specifications

Product Type

Accessories

Brand

Flexa

Family

RQS

Part Number

15030020209

Part Number (Old)

5030.020.209

Colour

Black

Material

PA6 Plastic

OD Outside Diameter (mm)

13.000

Width A (mm)

25.0

Height (mm)

25.0

Thickness E (mm)

16.0

Mounting Hole Diameter (mm)

5.5

Weight (kg|100)

0.6

Package Size

50 pcs

Low Temperature Rating (°C)

-40.0

High Temperature Rating (°C)

120.0

Data Sheet

Properties

  • ribbed fixing for strain relief
  • quick assembly by means of a hinged clip cap
  • for use in combination with C-profile bar
  • free of silicone, cadmium, halogen
  • fit for high mechanical stress
  • impact-resistant
  • rated HB [UL94]

Applications

  • Medium and Heavy Duty Applications
  • Machine and Plant Constructions
  • Insulated Electrical Installations
