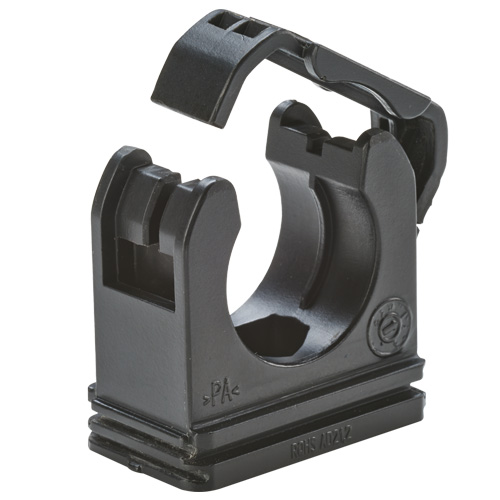

The Flexa RQS 15030020207 (Old Part Number 5030.020.207) is a Black 10.0 mm OD one-piece medium duty nylon plastic conduit clip with an integrated hinged clip cap.

Installation is simple using a single mounting screw or onto a C-profile bar. Conduits snap into the clip and the hinged clip cap locks-in the conduit.

Lateral strain relief is also provided by an internal rib which locks firmly into a single conduit corrugation.

Use with all fine or coarse corrugation plastic conduits of matching outside diameter (OD).

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$3.35 US$3.35
5 US$3.25 US$16.25
10 US$3.18 US$31.83
15 US$3.02 US$45.23
25 US$2.85 US$71.19
50 US$2.68 US$134.00
100 US$2.51 US$251.25
250+ US$2.35 US$586.25+
Unit Cost : US$
Extended Cost : US$3.35
Add to Quote

Specifications

Product Type

Accessories

Brand

Flexa

Family

RQS

Part Number

15030020207

Part Number (Old)

5030.020.207

Colour

Black

Material

PA6 Plastic

OD Outside Diameter (mm)

10.000

Width A (mm)

21.0

Height (mm)

23.5

Thickness E (mm)

16.0

Mounting Hole Diameter (mm)

5.5

Weight (kg|100)

0.5

Package Size

50 pcs

Low Temperature Rating (°C)

-40.0

High Temperature Rating (°C)

120.0

Data Sheet

Properties

  • ribbed fixing for strain relief
  • quick assembly by means of a hinged clip cap
  • for use in combination with C-profile bar
  • free of silicone, cadmium, halogen
  • fit for high mechanical stress
  • impact-resistant
  • rated HB [UL94]

Applications

  • Medium and Heavy Duty Applications
  • Machine and Plant Constructions
  • Insulated Electrical Installations

Certifications
