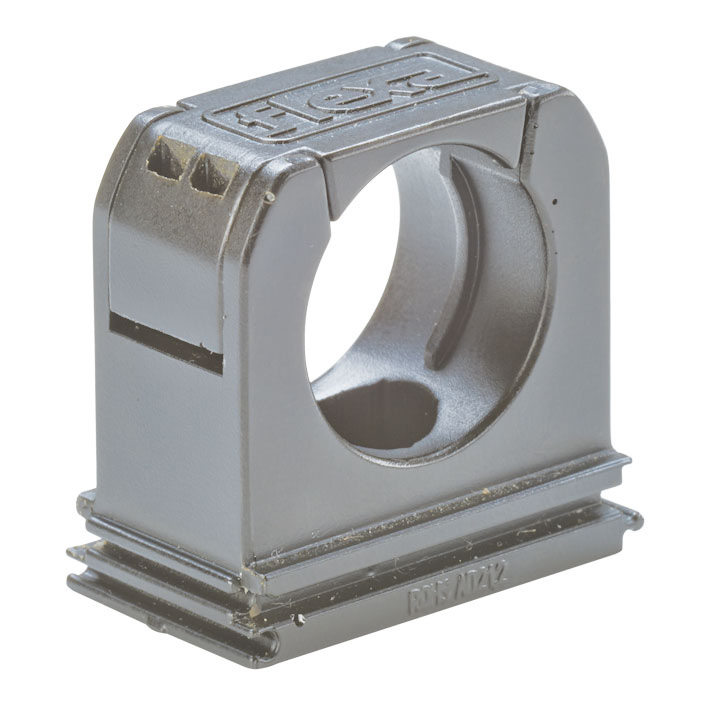

The Flexa RQS 15030020013 (Old Part Number 5030.020.013) is a grey 18.5 mm OD one-piece medium duty nylon plastic conduit clip with an integrated hinged clip cap. Installation is simple using a single mounting screw or onto a C-profile bar. Conduits snap into the clip and the hinged clip cap locks-in the conduit. Lateral strain relief is also provided by an internal rib which locks firmly into a single conduit corrugation.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$3.62 US$3.62
5 US$3.51 US$17.56
10 US$3.44 US$34.39
15 US$3.26 US$48.87
25 US$3.08 US$76.93
50 US$2.90 US$144.80
100 US$2.72 US$271.50
250+ US$2.53 US$633.50+
Unit Cost : US$
Extended Cost : US$3.62
Add to Quote

Specifications

Product Type

Accessories

Brand

Flexa

Family

RQS

Part Number

15030020013

Part Number (Old)

5030.020.013

Colour

Grey

Material

PA6 Plastic

OD Outside Diameter (mm)

17.800

Width A (mm)

31.0

Height (mm)

31.5

Thickness E (mm)

16.0

Mounting Hole Diameter (mm)

6.5

Weight (kg|100)

0.9

Package Size

50 pcs

Low Temperature Rating (°C)

-40.0

High Temperature Rating (°C)

120.0

Data Sheet

Properties

  • ribbed fixing for strain relief
  • quick assembly by means of a hinged clip cap
  • for use in combination with C-profile bar
  • free of silicone, cadmium, halogen
  • fit for high mechanical stress
  • impact-resistant
  • rated HB [UL94]

Applications

  • Medium and Heavy Duty Applications
  • Machine and Plant Constructions
  • Insulated Electrical Installations
