Mfr. Part #
15030020009
Categories Accessories, Conduit Clips and Caps | Light and Medium Duty, IBIS FLEXAquick Fitting 50 Pack, RQS

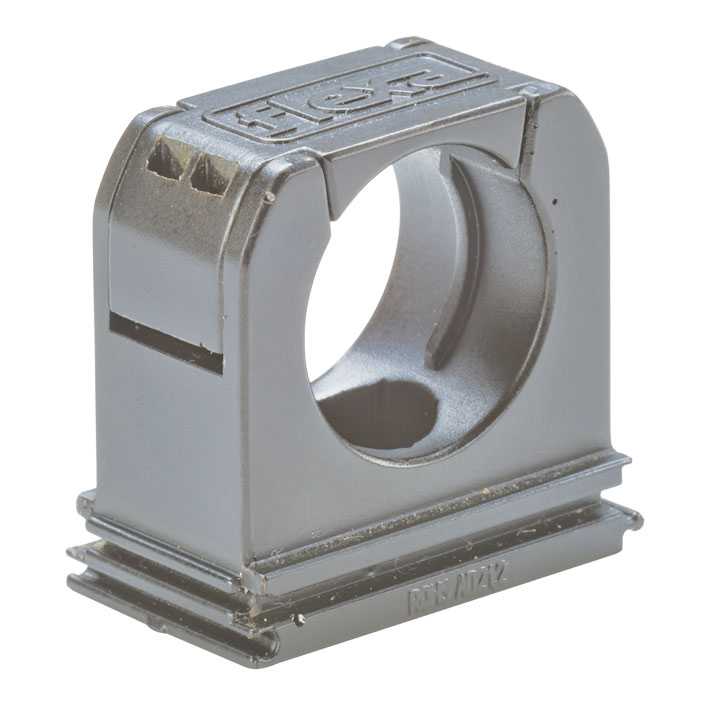

The Flexa RQS 15030020009 (Old Part Number 5030.020.009) is a grey 13.0 mm OD one-piece medium duty nylon plastic conduit clip with an integrated hinged clip cap. Installation is simple using a single mounting screw or onto a C-profile bar. Conduits snap into the clip and the hinged clip cap locks-in the conduit. Lateral strain relief is also provided by an internal rib which locks firmly into a single conduit corrugation.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$3.47 | US$3.47 |
5 | US$3.37 | US$16.83 |
10 | US$3.30 | US$32.97 |
15 | US$3.12 | US$46.85 |
25 | US$2.95 | US$73.74 |
50 | US$2.78 | US$138.80 |
100 | US$2.60 | US$260.25 |
250+ | US$2.43 | US$607.25+ |
Unit Cost : US$
Extended Cost : US$3.47
Specifications
Product Type | Accessories |
---|---|
Brand | Flexa |
Family | RQS |
Part Number | 15030020009 |
Part Number (Old) | 5030.020.009 |
Colour | Grey |
Material | PA6 Plastic |
OD Outside Diameter (mm) | 13.000 |
Width A (mm) | 25.0 |
Height (mm) | 25.0 |
Thickness E (mm) | 16.0 |
Mounting Hole Diameter (mm) | 5.5 |
Weight (kg|100) | 0.6 |
Package Size | 50 pcs |
Low Temperature Rating (°C) | -40.0 |
High Temperature Rating (°C) | 120.0 |
Data Sheet
Properties
- ribbed fixing for strain relief
- quick assembly by means of a hinged clip cap
- for use in combination with C-profile bar
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
- rated HB [UL94]
Applications
- Medium and Heavy Duty Applications
- Machine and Plant Constructions
- Insulated Electrical Installations
