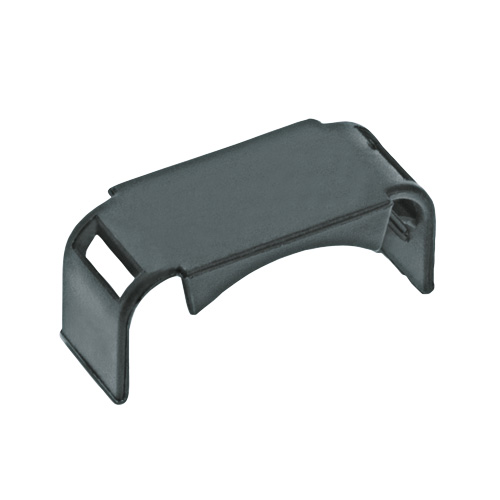

5030.026.248 / 15030026248 RQHD 54.5 mm OD black clip cover for the RQH 54.5 mm OD corrugated conduit mounting clip.
The Flexaquick RQHD 15030026248 (Old Part Number 5030.026.248) is a Black clip cap cover for the light duty RQH 54.5 mm OD corrugated conduit mounting clip.
The RQHD cap snaps easily onto the top of the RQH clip firmly securing the conduit in place, V2 (UL 94).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$1.72 | US$1.72 |
| 5 | US$1.55 | US$7.74 |
| 10 | US$1.38 | US$13.76 |
| 20 | US$1.29 | US$25.80 |
| 50 | US$1.20 | US$60.20 |
| 100+ | US$1.12 | US$111.80+ |
Unit Cost : US$
Extended Cost : US$1.72
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Accessories |
| Brand | Flexa |
| Family | RQHD |
| Part Number | 15030026248 |
| Part Number (Old) | 5030.026.248 |
| Colour | Black |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 54.5 |
| Weight (kg|100) | 0.5 |
| Low Temperature Rating (°C) | -40.0 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113204301 |
Data Sheet
Properties
- rated V2 [UL94]
Applications
- Light Applications
- Machine and Plant Constructions
- Insulated Electrical Installations
Certifications
