Flexa RQH 5030.025.048 / 15030025048

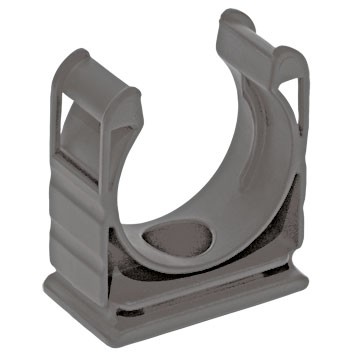

The Flexa RQH 15030025048 (Old Part Number 5030.025.048) is a grey 54.5 mm OD light duty nylon plastic mounting clip for use with corrugated plastic conduits like ROHRflex. The clip installs easily anywhere using a single mounting screw or onto a C-profile bar. Conduits snap into the clip and are securely fixed. Lateral strain relief is also provided by an internal rib which locks firmly into a single conduit corrugation, V2 (UL 94).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$8.16 | US$8.16 |
| 5 | US$7.34 | US$36.72 |
| 10 | US$6.53 | US$65.28 |
| 20 | US$6.12 | US$122.40 |
| 50 | US$5.71 | US$285.60 |
| 100+ | US$5.30 | US$530.40+ |
Unit Cost : US$
Extended Cost : US$8.16
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Accessories |
| Brand | Flexa |
| Family | RQH |
| Part Number | 15030025048 |
| Part Number (Old) | 5030.025.048 |
| Colour | Grey |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 54.5 |
| Width A (mm) | 67 |
| Height (mm) | 69 |
| D (mm) | 39 |
| Thickness E (mm) | 17 |
| Mounting Hole Diameter (mm) | 6.5 |
| Weight (kg|100) | 2.6 |
| Low Temperature Rating (°C) | -40.0 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113199812 |
Data Sheet
Properties
- fastening mounting hole
- ribbed fixing for strain relief
- assembly of varying sizes joined in line or on top of each other
- for use in combining with C-profile bar
- rated V2 [UL94]
Applications
- Light Applications
- Machine and Plant Constructions
- Insulated Electrical Installations
