Mfr. Part #
10239202034
Categories Braiding, HG-PA, IBIS FLEXA HG Braided Sleeving, Special Protective Conduits

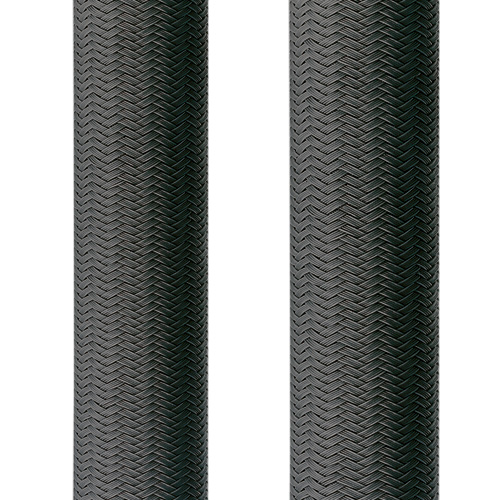

The Flexa HG-PA 10239202034 (Old Part Number 0239.202.034) is described as a nominal ID 25.0 mm axially compressible, tubular plastic wire braiding consisting of cross woven round black polyamide PA6.6 monofiles. Over 85% coverage. Certified EN 45545-2 (R23;HL3).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$1,096.31 | US$1,096.31 |
2 | US$1,041.49 | US$2,082.99 |
5 | US$986.68 | US$4,933.40 |
10 | US$931.86 | US$9,318.64 |
15 | US$877.05 | US$13,155.72 |
20+ | US$822.23 | US$16,444.65+ |
Unit Cost : US$
Extended Cost : US$1096.31
Specifications
Product Type | Special Protective Conduit |
---|---|
Brand | Flexa |
Family | HG-PA |
Part Number | 10239202034 |
Part Number (Old) | 0239.202.034 |
Colour | Black |
Weight (kg|m) | 0.026 |
Package Size | 100m Per Roll |
Material | PA6.6 Plastic |
Low Temperature Rating (°C) | -50 |
High Temperature Rating (°C) | 120 |
Extended Temperature (°C) | 150 |
NW ID | 25 |
ID Min | Max | 18.0 – 34.0 |
Flammability Rating (UL 94) | V2 |
Data Sheet
Properties
- V2 according to UL 94
- axially pushed together, in a certain proportion, depending on the construction of the braiding
- easy pulling in of cables
- the braiding becomes tight by stretching
- oil and benzine resistant
- widely resistant to solvents and acids
- free of halogen
- self-extinguishing and flame-resistant
Applications
- Cable Bundling
- Machine and Plant Construction
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
