Mfr. Part #
AR100.928.100
Categories Sensors, Sensors, Vibration and Accelerometer Sensors

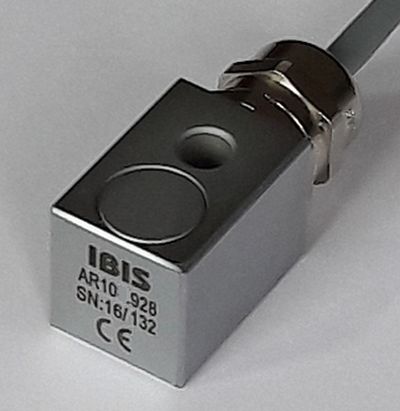

The IBIS GmbH Sensor # AR100.928.100 is a 100 mV/g, One Axis Accelerometer & Vibration Sensor, single bolt mount, 10 metre (33 ft) PUR cable with pigtail ends.
The block style stainless steel body sensor is designed for permanent installations requiring machine & bearing vibration monitoring.
Technical Data:
- Sensor type: Piezoelectric accelerometer element, PZT – Shear
- Sensitivity: 100mV/g +/- 10%
- Resolution: 0.001 g
- Shock Resistance: max. 5000 g
- Frequency Response: 0.5 to 10,000 Hz, +/- 3 dB
- Spike energy measurement: 5,000 to 50,000 Hz
- Resonance Frequency: > 25 kHz
- Connection: PUR jacketed cable with 2 wire + shield, pigtail ends, length 10.0 metres
Applications for Vibration Acceleration Sensors:
- Bearing housing or absolute casing vibration
- Monitoring of / for high-frequency vibrations
- Vibrations from rolling element bearings or gearboxes
- General bearing condition and wear
- Sense mechanical wear and degradation before serious machine breakdown
In Stock: 1
Factory Lead-Time: Can Ship in 1 – 2 weeks
1 in stock
Quantity | Unit Price | Ext. Price |
---|---|---|
1+ | US$634.29 | US$634.29+ |
Unit Cost : US$
Extended Cost : US$634.29
Specifications
Product Type | Sensors |
---|---|
Brand | IBIS GmbH |
Family | Sensors |
Part Number | AR100.928.100 |
Housing Material | Stainless Steel |
Weight (g) | 500 |
Connection | Pigtail |
IP Rating | IP67 |
Operating Temperature Range | -40 to +120 °C |
Sensor Type | Piezo Electric |
Number of Axes | 1 |
Sensitivity (mV/g) | 100 |
Resolution (g) | 0 |
Acceleration Max (g) | 50 |
Shock Resistance (g) | 5000 |
Frequency Response | 0.5Hz to 10kHz |
Spike Energy Measurement | 5kHz to 50kHz |
Cable Length/Type | 10.0 m PUR |
