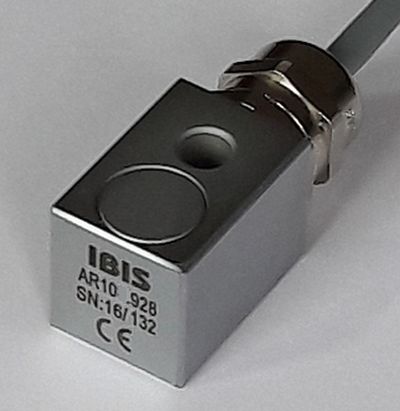

The IBIS Sensor # AR10.928.010.L is a 10 mV/g, One Axis Accelerometer & Vibration Sensor, single bolt mount, 1.0 metre (3.3 ft) PUR Cable & Lemo connector
In Stock: 0
Factory Lead-Time: Can Ship in 1 – 2 weeks
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$685.74 | US$685.74+ |
Unit Cost : US$
Extended Cost : US$685.74
Specifications
| Product Type | Sensors |
|---|---|
| Brand | IBIS GmbH |
| Family | Sensors |
| Part Number | AR10.928.010.L |
| Housing Material | Stainless Steel |
| Weight (g) | 300 |
| Connection | Lemo |
| IP Rating | IP67 |
| Operating Temperature Range | -40 to +80 °C |
| Sensor Type | Piezo Electric |
| Number of Axes | 1 |
| Sensitivity (mV/g) | 10 |
| Resolution (g) | 0 |
| Acceleration Max (g) | 500 |
| Shock Resistance (g) | 5000 |
| Frequency Response | 0.5Hz to 10kHz |
| Spike Energy Measurement | 5kHz to 50kHz |
| Cable Length/Type | 1.0 m PUR |
Data Sheet
Overview
- Full details coming soon
Certifications
