Mfr. Part #
NP2-LM
Categories NorthStar Controls Loop Detectors, Sensors, Vehicle Loop Detectors

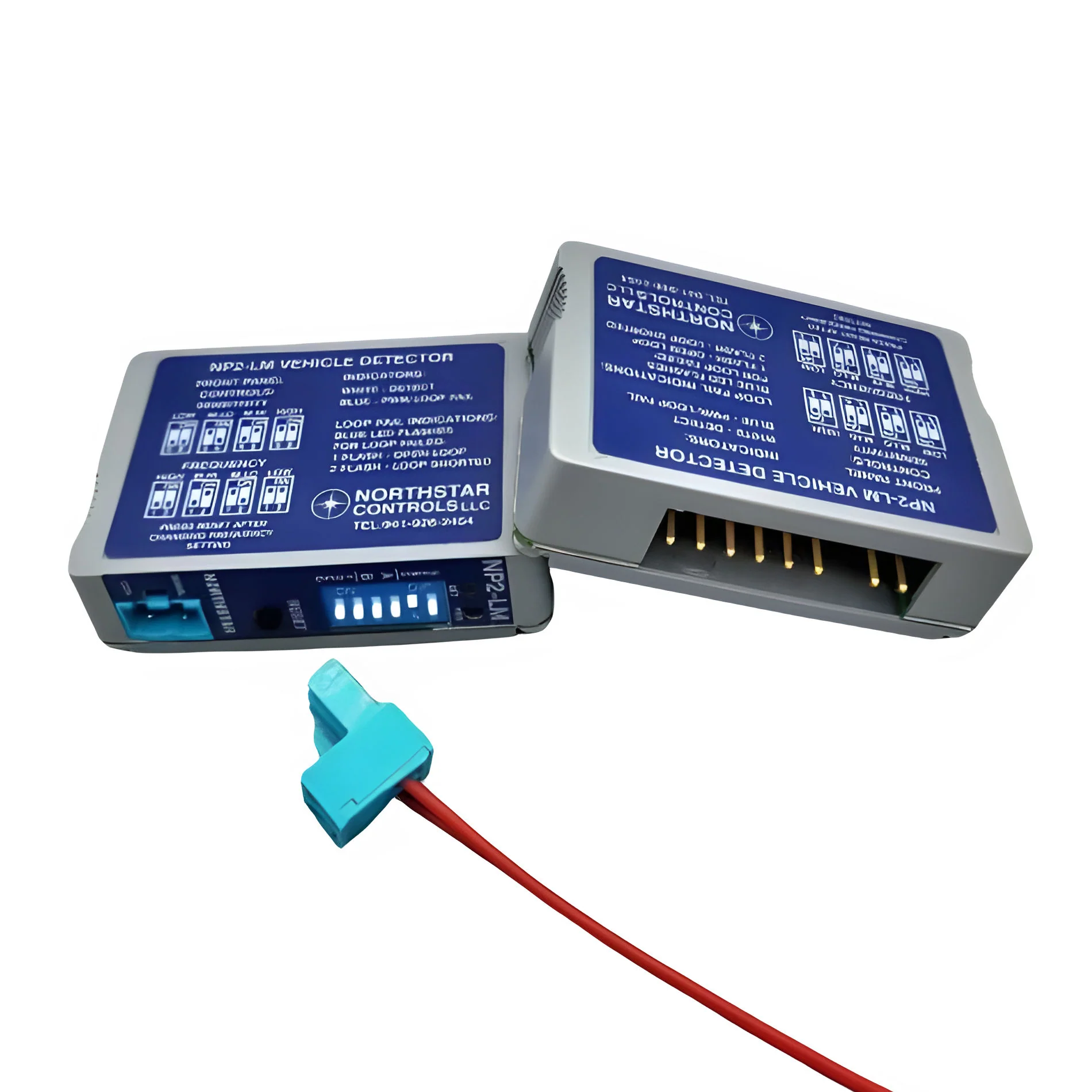

The Northstar Controls NP2-LM is a 12 to 24 volt DC single channel “plug-in” vehicle loop detector specifically designed for LiftMaster gate operators.
- Four selectable sensitivities and four selectable loop frequencies
- Separate Power/Fault and Detect Indicators
- Automatic Sensitivity Boost
- Permanent Presence with programmable presence times
No re-wiring needed, simply plug-in the detector. Replace old or lightening damaged detectors in seconds.
NOTE: Loop detectors are not returnable or refundable after purchase. Please choose the model and voltage you need carefully!
In Stock: 0
Factory Lead-Time: Can ship in 3 – 5 days.
Quantity | Unit Price | Ext. Price |
---|---|---|
1+ | US$119.98 | US$119.98+ |
Unit Cost : US$
Extended Cost : US$119.98
Specifications
Product Type | Sensors |
---|---|
Brand | NorthStar Controls |
Family | NorthStar Controls Loop Detectors |
Part Number | NP2-LM |
Housing Size | 55 / 55 / 20 mm |
Housing Material | Plastic |
Weight (g) | 500 |
Connection | LiftMaster Plug-in |
IP Rating | IP40 |
Operating Temperature Range | -35°F to 165°F / -37°C to 74°C |
Number of Channels | 1 |
Supply Voltage | +12 to 24 VDC |
Output | Transistor 30 mA @ 24 Volts |
Data Sheet
Overview
- Full details coming soon
