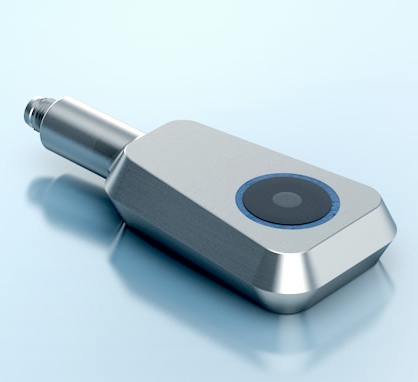

PMS-25/CF/A1 Hygienic 30 – 350 mm range Microsonic ultrasonic proximity sensor 1 x Push/Pull output, IO-Link, stainless steel

Product Name:
PMS-25/CF/A1 Hygienic 30 – 350 mm range Microsonic ultrasonic proximity sensor 1 x Push/Pull output, IO-Link, stainless steel

Mfr. Part # PMS-25/CF/A1 Categories , ,

The Microsonic cuboidal PMS-25/CF/A1 is a 30 – 350 mm range Hygienic Ultrasonic Proximity Sensor, 1 x Push/Pull output, IO-Link ready, stainless steel housing.

Features:

  • Sensing range 30 – 350 mm
  • 1 x Push/Pull output
  • IO-Link equipped
  • Unique hygienic stainless steel housing design
  • High chemical resistance, meets ECOLAB and EHEDG (TYPE EL Class I AUX) guidelines
  • Programming by Teach-in
  • Resolution of 0.10 mm
  • IP67 sealing and M8 – 4 pin connection plug

Applications: The PMS family of ultrasonic sensors are crafted to meet the highest hygienic standards, adhering to EHEDG guidelines and using ECOLAB certified and FDA-compliant materials. The wash-down stainless steel housing is designed without crevices or dirt edges, making these sensors ideal for intensive cleaning and disinfection, perfect for use in the food and pharmaceutical industries.

In Stock: 0
Factory Lead-Time: Can ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$551.11 US$551.11+
Unit Cost : US$
Extended Cost : US$551.11
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Stainless Steel – Hygienic
Part Number

PMS-25/CF/A1
Model ID Number

35100
Resolution

0.10 mm
Housing Material

Stainless Steel
Weight (g)

140
Switching Output

Push-pull | 100 mA | NO/NC
Interface

IO-Link
Connection

M8 | 4-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Supply Voltage

+10 to 30 VDC
Sensing Distance

350 mm
Body Size

Unique

Data Sheet

Overview

  • Full details coming soon

Certifications
