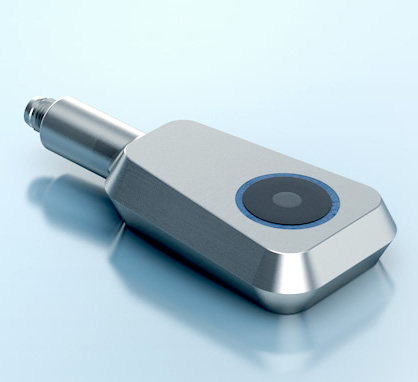

The Microsonic cuboidal PMS-15/CF/A1 is a 20 – 250 mm range Hygienic Ultrasonic Proximity Sensor, 1 x Push/Pull output, IO Link, stainless steel housing.
Features include:
- Sensing range 20 – 250 mm
- 1 x Push/Pull output
- IO Link equipped
- Unique hygienic stainless steel housing design
- High chemical resistance, meets ECOLAB and EHEDG (TYPE EL Class I AUX) guidelines
- Programming by Teach-in
- Resolution of 0.10 mm
- Temperature compensation
- Operating voltage 10 – 30 VDC
- IP67 sealing and M8 – 4 pin connection
In Stock: 0
Factory Lead-Time: Can ship in 4 – 6 weeks
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$501.38 | US$501.38+ |
Unit Cost : US$
Extended Cost : US$501.38
Specifications
| Product Type | Sensors |
|---|---|
| Brand | Microsonic |
| Family | Stainless Steel – Hygienic |
| Part Number | PMS-15/CF/A1 |
| Resolution | 0.10 mm |
| Housing Material | Stainless Steel |
| Weight (g) | 40 |
| Switching Output | Push-pull | 100 mA | NO/NC |
| Interface | IO-Link |
| Connection | M8 | 4-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -25 to +70 °C |
| Sensing Distance | 250 mm |
| Body Size | Unique |
Data Sheet
Overview
- Full details coming soon
Certifications
