PMS-100/CU/A1 Hygienic 120 – 1300 mm range Microsonic Ultrasonic Measuring Sensor, 1 x Analogue 0-10 V output, stainless steel, radial sensing

Product Name:
PMS-100/CU/A1 Hygienic 120 – 1300 mm range Microsonic Ultrasonic Measuring Sensor, 1 x Analogue 0-10 V output, stainless steel, radial sensing

Mfr. Part # PMS-100/CU/A1 Categories , ,

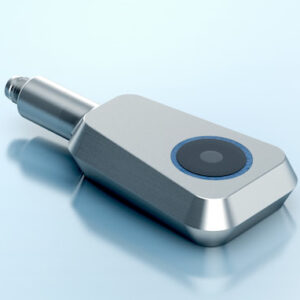

The Microsonic cuboidal PMS-100/CU/A1 is a 120 – 1300 mm range Hygienic Ultrasonic Measuring Sensor, 1 x Analogue 0-10 V output, stainless steel housing.

Features:

  • Sensing range 120 – 1300 mm
  • Analogue 0 – 10 V output
  • Unique hygienic stainless steel housing design
  • High chemical resistance, meets ECOLAB and EHEDG (TYPE EL Class I AUX) guidelines
  • Programming by Teach-in
  • Resolution of 0.069 mm to 0.38 mm, depending on the analogue window
  • IP67 sealing and M8 – 4 pin connection plug

Applications: The PMS family of ultrasonic sensors are crafted to meet the highest hygienic standards, adhering to EHEDG guidelines and using ECOLAB certified and FDA-compliant materials. The wash-down stainless steel housing is designed without crevices or dirt edges, making these sensors ideal for intensive cleaning and disinfection, perfect for use in the food and pharmaceutical industries.

In Stock: 0
Factory Lead-Time: Can ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$621.44 US$621.44+
Unit Cost : US$
Extended Cost : US$621.44
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Stainless Steel – Hygienic
Part Number

PMS-100/CU/A1
Resolution

.069 mm
Housing Material

Stainless Steel
Weight (g)

140
Switching Output

0-10 VDC
Interface

Teach-in
Connection

M8 | 4-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Sensing Distance

1300 mm
Body Size

Unique

Data Sheet

Overview

  • Full details coming soon
