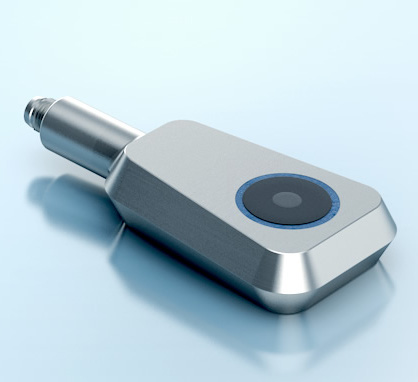

The Microsonic cuboidal PMS-100/CI/A1 is a 120 – 1300 mm range Hygienic Ultrasonic Measuring Sensor, 1 x Analogue 4-20 mA output, stainless steel housing.
Features include:
- Sensing range 120 – 1300 mm
- Analogue 4 – 20 mA output
- Unique hygienic stainless steel housing design
- High chemical resistance, meets ECOLAB and EHEDG (TYPE EL Class I AUX) guidelines
- Programming by Teach-in
- Resolution of 0.069 mm to 0.38 mm, depending on the analogue window
- Temperature compensation
- Operating voltage 10 – 30 VDC
- IP67 sealing and M8 – 4 pin connection
In Stock: 0
Factory Lead-Time: Can ship in 3 – 5 days
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$618.60 | US$618.60+ |
Unit Cost : US$
Extended Cost : US$618.6
Specifications
| Product Type | Sensors |
|---|---|
| Brand | Microsonic |
| Family | Stainless Steel – Hygienic |
| Part Number | PMS-100/CI/A1 |
| Resolution | .069 mm |
| Housing Material | Stainless Steel |
| Weight (g) | 35 |
| Switching Output | 4-20 mA |
| Interface | Teach-in |
| Connection | M8 | 4-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -25 to +70 °C |
| Sensing Distance | 1300 mm |
| Body Size | Unique |
Data Sheet
Overview
- Full details coming soon
Certifications
