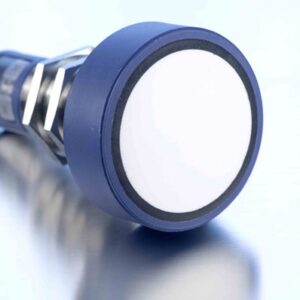

mic+600/F/TC Microsonic Ultrasonic Proximity Sensor, 600 – 8000 mm range, Push-Pull NO/NC output, IO-Link

Product Name:
mic+600/F/TC Microsonic Ultrasonic Proximity Sensor, 600 – 8000 mm range, Push-Pull NO/NC output, IO-Link

Mfr. Part # mic+600/F/TC Categories , ,

The Microsonic Cylindrical M30 Body mic+600/F/TC is a 600 – 8000 mm range Ultrasonic Proximity Sensor, digital display, 1 x Push/Pull output, IO-Link equipped.

Highlights:

  • IO-Link interface ready
  • 600 – 8,000 mm
  • 1 x Push-pull switching output
  • Resolution of 1.0 mm
  • Operating modes: proximity switch, reflective barrier and window
  • Programming by Teach-in buttons or IO-Link
  • 10–30 VDC operating voltage
  • Easy mounting M30 nickel-brass IP67 housing with M12 – 5 pin connector.

Applications for mic+ 600 ultrasonic sensors: The mic+ series are ideal sensors for conveyor systems, packaging machines, fill-level check, wafer board detection, labelling machines, sorting systems, sheet loop control, small component detection, part bowl feeders, or any sensing application that requires accurate, non-contact target detection.

In Stock: 0
Factory Lead-Time: Can Ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$346.87 US$346.87+
Unit Cost : US$
Extended Cost : US$346.87
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Cylindrical Body
Part Number

mic+600/F/TC
Model ID Number

22580
Resolution

1.0 mm
Housing Material

Nickel-plated Brass
Weight (g)

270
Switching Output

Push-pull | 100 mA | NO/NC
Interface

IO-Link
Connection

M12 | 5-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Supply Voltage

+10 to 30 VDC
Sensing Distance

8000 mm
Body Size

M30

Data Sheet

Overview

  • Full details coming soon
