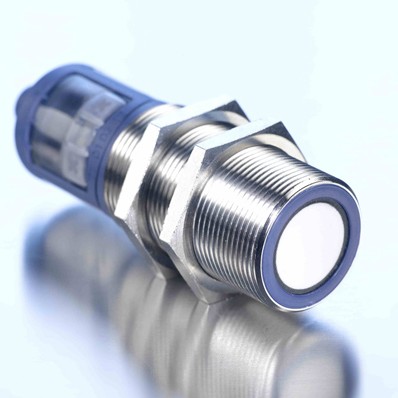

mic+130/E/TC Microsonic Ultrasonic Proximity Sensor 200 – 2000 mm range, digital display, NPN NO/NC output

Product Name:
mic+130/E/TC Microsonic Ultrasonic Proximity Sensor 200 – 2000 mm range, digital display, NPN NO/NC output

Mfr. Part # mic+130/E/TC Categories , ,

The Microsonic Cylindrical M30 Body mic+130/E/TC is a 200 – 2000 mm range Ultrasonic Proximity Sensor, digital display, NPN NO/NC output.

Highlights:

  • 00 – 2,000 mm
  • 1 x NPN NO/NC switching output
  • Operating modes: proximity switch, reflective barrier and window
  • Programming by Teach-in buttons T1 and T2, LinkControl configurable
  • Resolution of 0.18 mm
  • Temperature compensation
  • 9–30 VDC operating voltage
  • Easy mounting M30 nickel-brass IP67 housing with M12 – 5 pin connector.

Applications for mic+ ultrasonic sensors: The mic+ series are ideal sensors for conveyor systems, packaging machines, fill-level check, wafer board detection, labelling machines, sorting systems, sheet loop control, small component detection, part bowl feeders, or any sensing application that requires accurate, non-contact target detection.

In Stock: 0
Factory Lead-Time: Can ship in 3 – 5 days
Quantity Unit Price Ext. Price
1+ US$285.26 US$285.26+
Unit Cost : US$
Extended Cost : US$285.26
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Cylindrical Body
Part Number

mic+130/E/TC
Resolution

0.18 mm
Housing Material

Nickel-plated Brass
Weight (g)

150
Switching Output

NPN NO/NC | 200 mA
Interface

Teach-in
Connection

M12 | 5-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Sensing Distance

2000 mm
Body Size

M30

Data Sheet

Overview

  • Full details coming soon

Certifications
