mic+130/DIU/TC Microsonic 200 – 2000 mm range Ultrasonic Distance Measurement Sensor, digital display, analog 4-20 mA, 0-10 V, and PNP NO/NC outputs

Product Name:
mic+130/DIU/TC Microsonic 200 – 2000 mm range Ultrasonic Distance Measurement Sensor, digital display, analog 4-20 mA, 0-10 V, and PNP NO/NC outputs

Mfr. Part # mic+130/DIU/TC Categories , ,

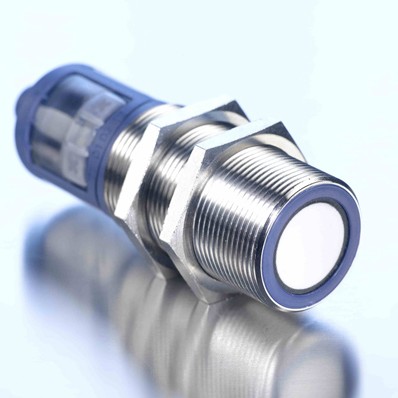

The Microsonic Cylindrical M30 Body mic+130/DIU/TC is a 200 – 2000 mm range Ultrasonic Distance Measurement Sensor, with a digital display, analog 4-20 mA, 0-10V, and 1 x PNP NO/NC outputs.

Highlights:

  • 0 – 2000 mm
  • Analogue 4-20 mA and 0-10V outputs
  • Digital PNP NO/NC output
  • Simple programming via a Teach-in buttons T1 and T2 and the digital display
  • Resolution of 0.18 mm to 0.57 mm, depending on the analogue window
  • Temperature compensation
  • 9–30 VDC operating voltage
  • Easy mounting M30 nickel-brass IP67 housing with M12 – 5 pin plug connector.

Applications for mic+ ultrasonic sensors: The mic+ series are ideal sensors for conveyor systems, packaging machines, fill-level check, wafer board detection, labelling machines, sorting systems, sheet loop control, small component detection, part bowl feeders, or any sensing application that requires accurate, non-contact target detection.

In Stock: 0
Factory Lead-Time: Can Ship in 3 – 5 days
Quantity Unit Price Ext. Price
1+ US$627.47 US$627.47+
Unit Cost : US$
Extended Cost : US$627.47
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Cylindrical Body
Part Number

mic+130/DIU/TC
Resolution

0.18 mm
Housing Material

Nickel-plated Brass
Switching Output

Analog 4-20mA | 0-10V | PNP NO/NC
Interface

Remote Teach-in, Teach-in
Connection

M12 | 5-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Sensing Distance

2000 mm
Body Size

M30

Data Sheet

Overview

  • Full details coming soon

Certifications
