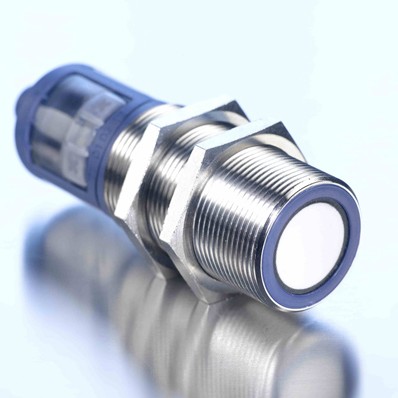

mic+130/DD/TC Microsonic Ultrasonic Proximity Sensor 200 – 2000 mm range, digital display, 2 x PNP NO/NC outputs

Product Name:
mic+130/DD/TC Microsonic Ultrasonic Proximity Sensor 200 – 2000 mm range, digital display, 2 x PNP NO/NC outputs

Mfr. Part # mic+130/DD/TC Categories , ,

The Microsonic Cylindrical M30 Body mic+130/DD/TC is a 200 – 2000 mm range Ultrasonic Proximity Sensor, digital display, 2 x PNP NO/NC outputs.

Highlights:

  • 2 x PNP NO/NC switching outputs
  • Operating modes: proximity switch, reflective barrier and window
  • Programming by Teach-in buttons T1 and T2, LinkControl configurable
  • Resolution of 0.18 mm
  • Temperature compensation
  • 9–30 VDC operating voltage
  • Easy mounting M30 nickel-brass IP67 housing with M12 – 5 pin plug connector.

Applications for mic+ ultrasonic sensors: The mic+ series are ideal sensors for conveyor systems, packaging machines, fill-level check, wafer board detection, labelling machines, sorting systems, sheet loop control, small component detection, part bowl feeders, or any sensing application that requires accurate, non-contact target detection.

In Stock: 0
Factory Lead-Time: Can Ship in 2 – 3 days
Quantity Unit Price Ext. Price
1+ US$396.14 US$396.14+
Unit Cost : US$
Extended Cost : US$396.14
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Cylindrical Body
Part Number

mic+130/DD/TC
Resolution

0.18 mm
Housing Material

Nickel-plated Brass
Weight (g)

150
Switching Output

2 x PNP NO/NC | 200 mA
Interface

Remote Teach-in, Teach-in
Connection

M12 | 5-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Sensing Distance

2000 mm
Body Size

M30

Data Sheet

Overview

  • Full details coming soon
