Mfr. Part #
mic+130/D/TC
Categories Cylindrical Body, Sensors, Ultrasonic

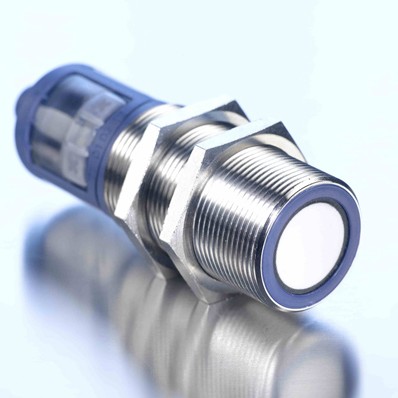

The Microsonic Cylindrical M30 Body mic+130/D/TC is a 200 – 2000 mm range Ultrasonic Proximity Sensor, digital display, PNP NO/NC output.
Features include:
- 00 – 2,000 mm
- 1 x PNP NO/NC switching output
- Operating modes: proximity switch, reflective barrier and window
- Programming by Teach-in buttons T1 and T2, LinkControl configurable
- Resolution of 0.18 mm
- Temperature compensation
- 9–30 VDC operating voltage
- Easy mounting M30 nickel-brass housing with M12 – 5 pin connector. IP67 sealing
In Stock: 0
Factory Lead-Time: Can Ship in 3 – 5 days
Quantity | Unit Price | Ext. Price |
---|---|---|
1+ | US$284.12 | US$284.12+ |
Unit Cost : US$
Extended Cost : US$284.12
Specifications
Product Type | Sensors |
---|---|
Brand | Microsonic |
Family | Cylindrical Body |
Part Number | mic+130/D/TC |
Resolution | 0.18 mm |
Housing Material | Nickel-plated Brass |
Switching Output | PNP NO/NC | 200 mA |
Interface | IO-Link |
Connection | M12 | 5-pin |
IP Rating | IP67 |
Operating Temperature Range | -25 to +70 °C |
Sensing Distance | 2000 mm |
Body Size | M30 |
Data Sheet
Overview
- Full details coming soon
