Mfr. Part #
mic-130/IU/M
Categories Cylindrical Body, Sensors, Ultrasonic

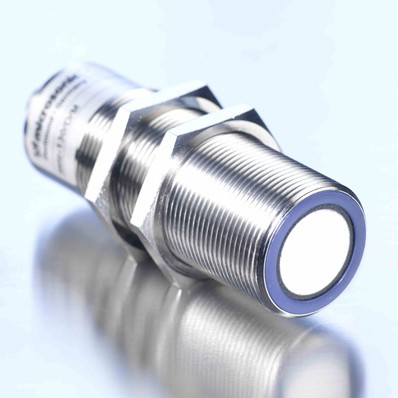

The Microsonic Cylindrical M30 Body mic-130/IU/M is a 200 -2000 mm range Ultrasonic Distance Measurement Sensor, all-metal body and ruggedized M12 connector, analogue 4-20 mA and 0-10V outputs.
Features include:
- Metal M12 – 5 pin connector for harsh operational conditions
- 00 – 2,000 mm
- Analogue output: 4-20 mA and 0-10V
- Simple programming via a Teach-in on pin 5.
- Resolution of 0.18 mm to 0.57 mm, depending on the analogue window
- Temperature compensation
- 9–30 VDC operating voltage
- Easy mounting M30 nickel-plated brass housing, IP67 sealing
In Stock: 0
Factory Lead-Time: Can Ship in 3 – 5 days
Quantity | Unit Price | Ext. Price |
---|---|---|
1+ | US$504.33 | US$504.33+ |
Unit Cost : US$
Extended Cost : US$504.33
Specifications
Product Type | Sensors |
---|---|
Brand | Microsonic |
Family | Cylindrical Body |
Part Number | mic-130/IU/M |
Resolution | 0.18 mm |
Housing Material | Nickel-plated Brass |
Switching Output | Analog 4-20mA | 0-10V |
Interface | Teach-in |
Connection | Metal M12 | 5-pin |
IP Rating | IP67 |
Operating Temperature Range | -25 to +70 °C |
Sensing Distance | 2000 mm |
Body Size | M30 |
Data Sheet
Overview
- Full details coming soon
