lpc+100/CFI Microsonic 120 – 1300 mm range, Ultrasonic Distance Measuring Sensor, 1 x Push/Pull, 1 x analogue 4-20 mA outputs, IO-Link

Product Name:
lpc+100/CFI Microsonic 120 – 1300 mm range, Ultrasonic Distance Measuring Sensor, 1 x Push/Pull, 1 x analogue 4-20 mA outputs, IO-Link

Mfr. Part # lpc+100/CFI Categories , ,

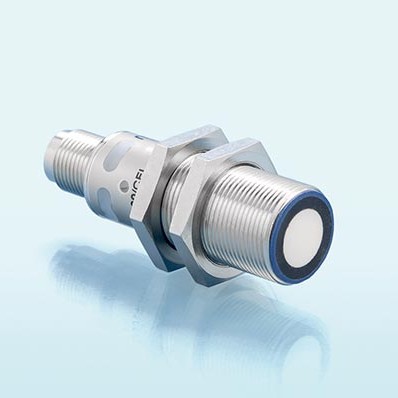

The Microsonic Cylindrical Body lpc+100/CFI is a 120 – 1300 mm range Ultrasonic Distance Measuring Sensor, 1 x analog 4-20 mA and 1 x Push/Pull outputs, M18 housing, IO-Link enabled.

Highlights:

  • – 1300 mm
  • 1 x Analogue 4-20mA output
  • 1 x Push/Pull output
  • IO-Link interface
  • Simple programming via a IO-Link or Teach-in input on pin 5 with LinkControl
  • Resolution 0.10 mm
  • Temperature compensation
  • Easy mounting M18 nickel-plated brass housing with M12 – 5 pin plug connector. IP67 sealing

Applications: The IO-Link ready lpc+100/CFI sensor is loaded with features and a good choice for many applications like paper feed stack detection in packaging machines, roll diameter monitoring in paper converting, tank liquid or bin pellet fill level monitoring, bottle detection, and any application where continuous measurement of varying or moving targets is needed.

In Stock: 0
Factory Lead-Time: Can ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$0.00 US$0.00+
Unit Cost : US$
Extended Cost : US$0
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Cylindrical Body
Part Number

lpc+100/CFI
Model ID Number

36310
Resolution

0.10 mm
Housing Material

Nickel-plated Brass
Weight (g)

35
Switching Output

Analog 4-20 mA | Push-pull | 100 mA | NO/NC
Interface

IO-Link
Connection

M12 | 5-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Supply Voltage

+10 to 30 VDC
Sensing Distance

1300 mm
Body Size

M18

Data Sheet

Overview

  • Full details coming soon
