lpc+100/CFF Microsonic 120 – 1300 mm range Ultrasonic Proximity Sensor, 2 x Push/Pull Output, IO-Link

Product Name:
lpc+100/CFF Microsonic 120 – 1300 mm range Ultrasonic Proximity Sensor, 2 x Push/Pull Output, IO-Link

Mfr. Part # lpc+100/CFF Categories , ,

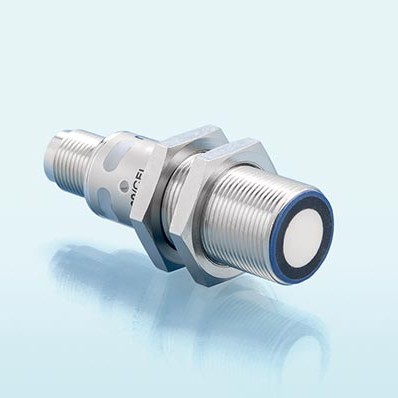

The Microsonic Cylindrical Body lpc+100/CFF is a 120 – 1300 mm range Ultrasonic Proximity Sensor, 2 x Push/Pull Output, M18 housing, IO-Link enabled.

Highlights:

  • 0 – 1300 mm
  • 2 x Push/Pull outputs with IO-Link
  • Simple programming via a IO-Link or Teach-in input on pin 5 with LinkControl
  • Resolution 0.10 mm
  • Temperature compensation
  • Easy mounting M18 nickel-plated brass housing with M12 – 5 pin plug connector. IP67 sealing

Applications: The IO-Link ready lpc+100/CFF sensor is loaded with features and a good choice for many applications like sheet stack detection in packaging machines, roll diameter monitoring in paper converting, tank liquid or bin pellet fixed level detection, bottle detection, and any application where an accurate fixed set-point level or target detection point is needed.

In Stock: 0
Factory Lead-Time: Can ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$0.00 US$0.00+
Unit Cost : US$
Extended Cost : US$0
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Cylindrical Body
Part Number

lpc+100/CFF
Model ID Number

36300
Resolution

0.10 mm
Housing Material

Nickel-plated Brass
Weight (g)

35
Switching Output

2 x Push-pull | 100 mA | NO/NC
Interface

IO-Link
Connection

M12 | 5-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Supply Voltage

+10 to 30 VDC
Sensing Distance

1300 mm
Body Size

M18
