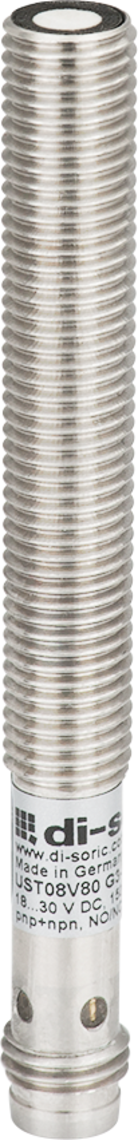

di-soric Cylindrical Body US-08-M-100-G3-T4
The di-soric Cylindrical Body US-08-M-100-G3-T4 is a di-soric 8 mm Ultrasonic Sensor, 100 mm Range, IO-Link, Digital Output
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can Ship Immediately
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$0.00 | US$0.00+ |
Unit Cost : US$
Extended Cost : US$0
Specifications
| Product Type | Sensors |
|---|---|
| Brand | di-soric |
| Family | Cylindrical Body |
| Part Number | US-08-M-100-G3-T4 |
| Resolution | 0.1 mm |
| Housing Material | Nickel-plated Brass |
| Weight (g) | 150 |
| Switching Output | Push-pull | 150 mA | NO/NC |
| Interface | IO-Link |
| Connection | M8 | 4-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -25 to +70 °C |
| Sensing Distance | 100 mm |
| Body Size | M8 |
Data Sheet
Overview
- Full details coming soon
Certifications
